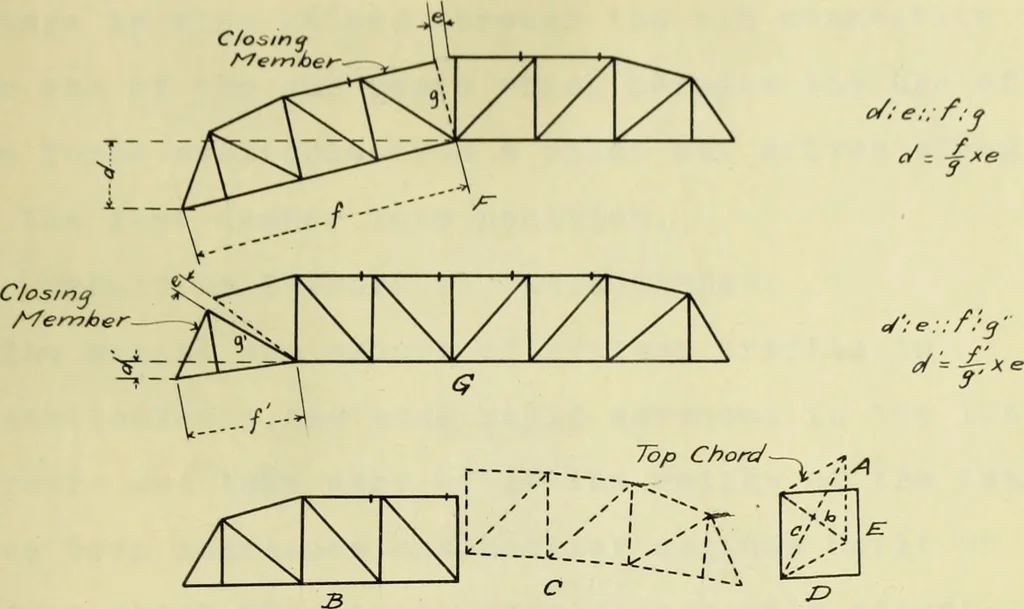

hpanel being distorted as is shorn in the dotted linesat(D)in such a manner as to make the diagonal distance(b)less than the diagonal distance(c)and less than thefabricated length of the member which will be locatedin the diagonal(b).It is a simple matter to give eachpanel the shape shown at(A)by… … Camher B/ock/nj arte/ C/os/nj ConneGf/on^ As the length of the diagonal distance(b )isless than the member occupying this position,by decreasingthe amount of camber blocking,the panel at(A)can bebrought toward a position shorn by full lines (E)in while thedistance center to center of end pins on…
