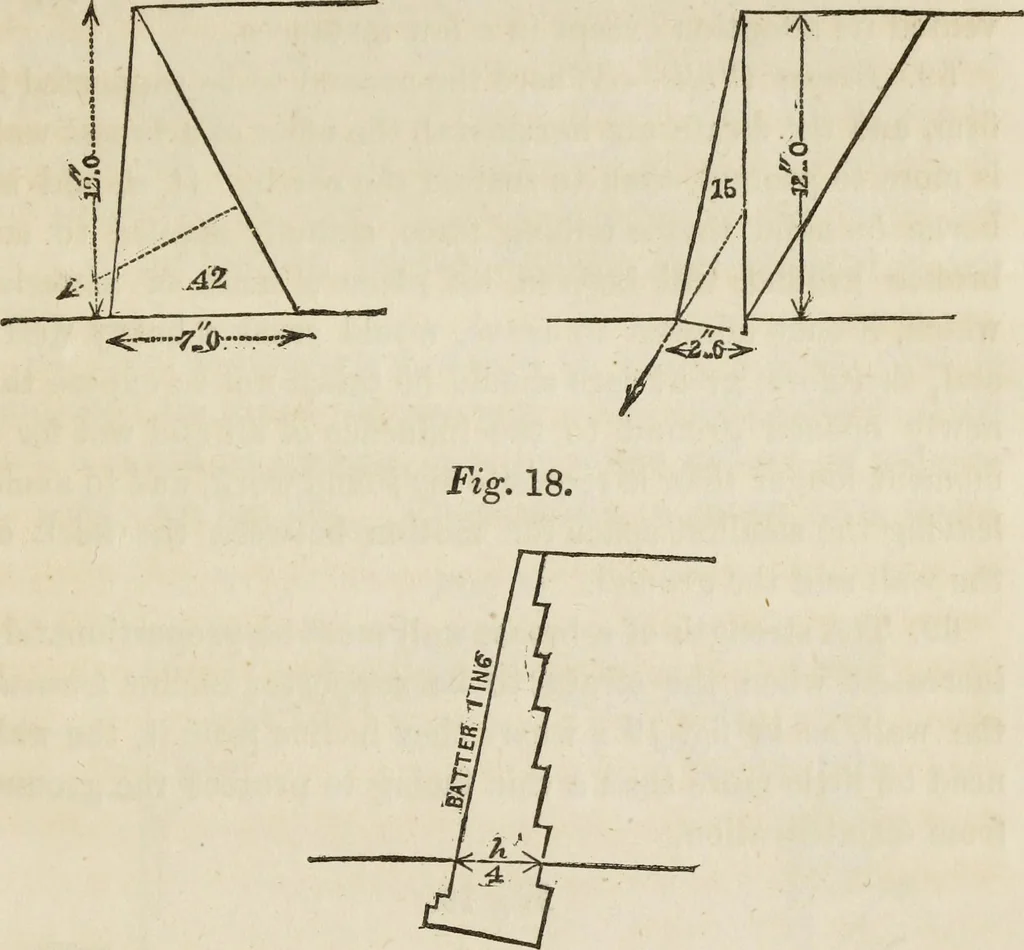

sectional areas of walls of different shapes, that would berequired to resist the pressure of a bank of earth 12 feethigh. ART OF BrjILDING. 41 Fig. 16. Fig. 17. … The first three examples are calculated to resist the maxi-mum, and the fourth, the minimum, thrust ; whilst the lastfigure shows the modified form usually adopted in practice. 57. It is sometimes necessary in soft ground to protect thetoe or front edge of a retaining wall with sheet pihng, to…
