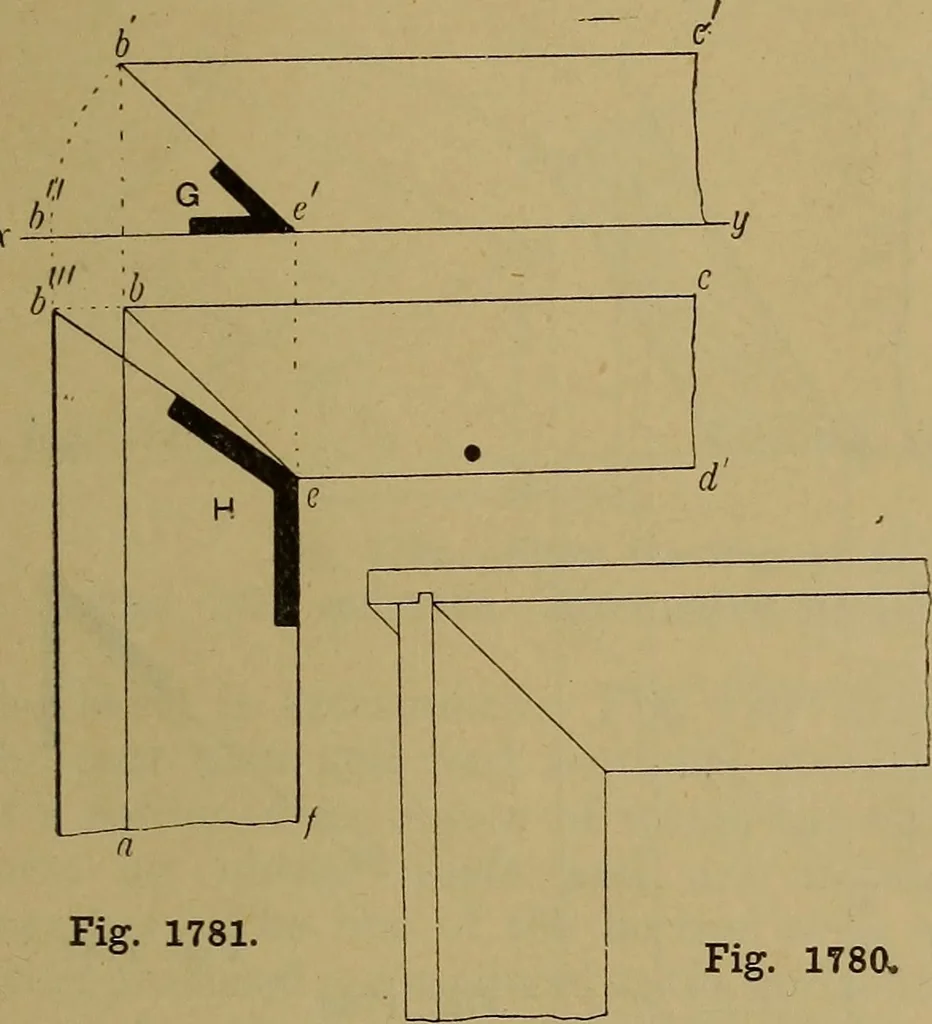

DING AND SETTING OUT. 551 Bevels for circle-on-circle work, etc., havealso been shown, and the methods of settingthem out geometrically explained, in con-nection with the special subject to whichthey belong. Geometrical Problems Practically Applied.—Fig. 1778 shows a very useful… … Fig. 1781 Fig. 1780. Fig. 1780.—Plan of One Corner of Liningsor Trough. Fig. 1781.—Method of Obtaining Bevels for Caseshown at Fig. 1780. x y intersecting it in o. Draw the v.t.(vertical trace) at the given angle as shownby the bevel c. Let a b be the plan of theline, then a b will be its…
