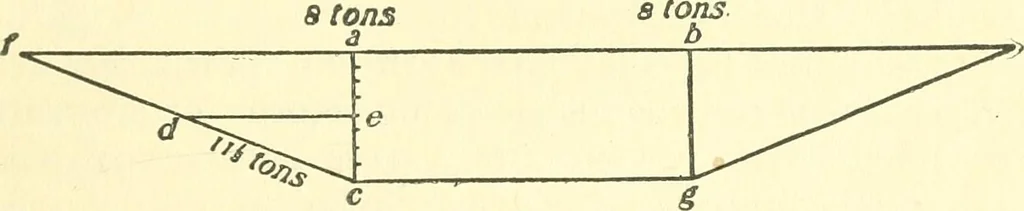

hickness of wooden beams, plus 750 bythe thickness of the flitch plate ; the square root of thisproduct is the required depth. Example : Find the depthof a flitch plate girder to carry a weight of 14,000 poundsat the centre of span, the span being 30 feet and thewidth of timbers 12 inches ; the… … FigJ97 178—To Find the Strain on Hog Chains fMechani- cal method).—Draw to a scale a plan of the hog chain ortruss, as Fig. 197 ; find the weight to be carried at the twopoints a and b, in this case eight tons; bisect the line a cat e and draw d c parallel to f a; divide the line a c intoas mcxny…
