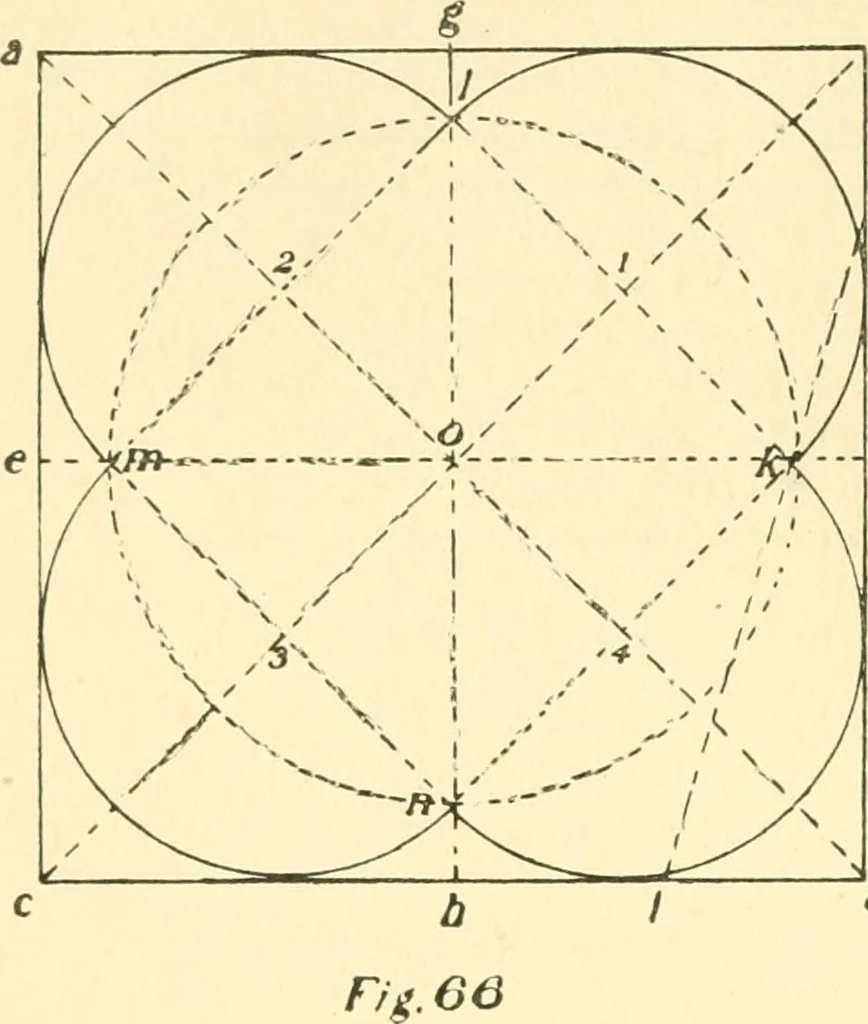

ing a Square.—Draw the diagonals and diameters, as shown in Fig. 66. Bisect ^ y in // bisecth d in // connect i andy, thus finding point k.J With o as centre and0 k as radius draw a cir-cle finding points /, inand 11,■ connect I in, in n,11 k and k /, thus find-ing points I, 2, 3, 4,which are the…
