Richey's guide and assistant for carpenters and mechanics : a work of practical information, giving almost every geometrical and practical problem likely to arise in the work of the carpenter, and quick and easy methods for their solution : the use of the steel square, etc., tables showing strength and weight of materials, methods of framing, useful recipes, etc., etc. (1894)
Richey, H. G. (Harry Grant), b. 1868 · New York : W.T. Comstock · leaf 90

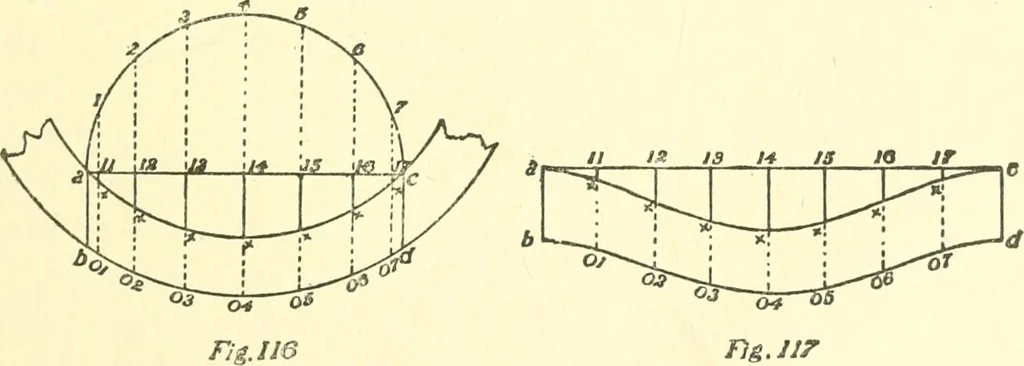

FlgJM Fig, Its these points let fall perpendiculars, as shown, making 1101 equal to 11 01, Fig. 114, and 12 02 equal to 12 02, Fig.114, etc. ; draw the curve a b through these points, 01, 02,etc.; from points 01, 02, etc., continue the lines, making01 X equal to 01 x, Fig. 114, and 02 x equal to 02… … 106—To Lay Out the Soffit or Veneering of anArch Through a Circular Wall.—Draw the curve ofthe wall, diS a c and b d, then the jambs of the arch SiS a band c d; with a c 2iS diameter, draw the arch a i, 2, 3, etc.;divide the arch into any number of equal spaces, as i, 2, 84 GUIDE AND ASSISTANT 3,…
Carpentry
