Rogers' drawing and design; an educational treatise relating to linear drawing; machine design; working drawings; transmission methods; steam, electrical and metal working machines and parts; lathes; boiler and parts; instruments and their use; tables, etc (1913)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 102

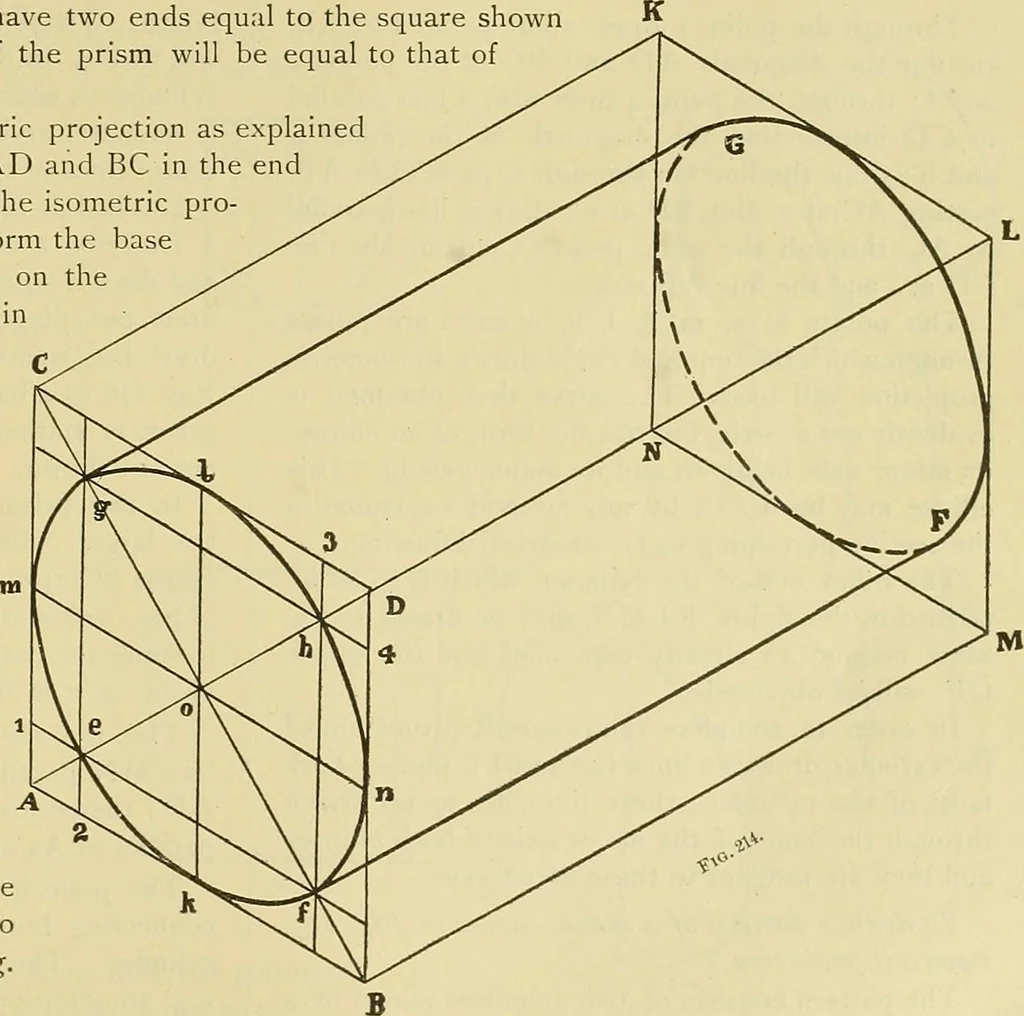

of the prism will be equal to that ofthe cylinder. Then draw the prism in isometric projection as explainedon page 115; draw the diagonals AD and BC in the endABCD of the prism and lay out the isometric pro-jection of the circle which is to form the baseof the required cylinder. Set off on theline… … 118 ROGERS DRAWING AND DESIGN. Through the point i draw a line parallel to AB,cutting the diagonals AD and BC at the points eand f; through the point 4 draw also a line parallelto CD intersecting the diagonals at the points gand h ; draw the line mn through o, parallel to AB,cutting AC at m and BD…
Mechanical drawing · Machine design
