Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 391

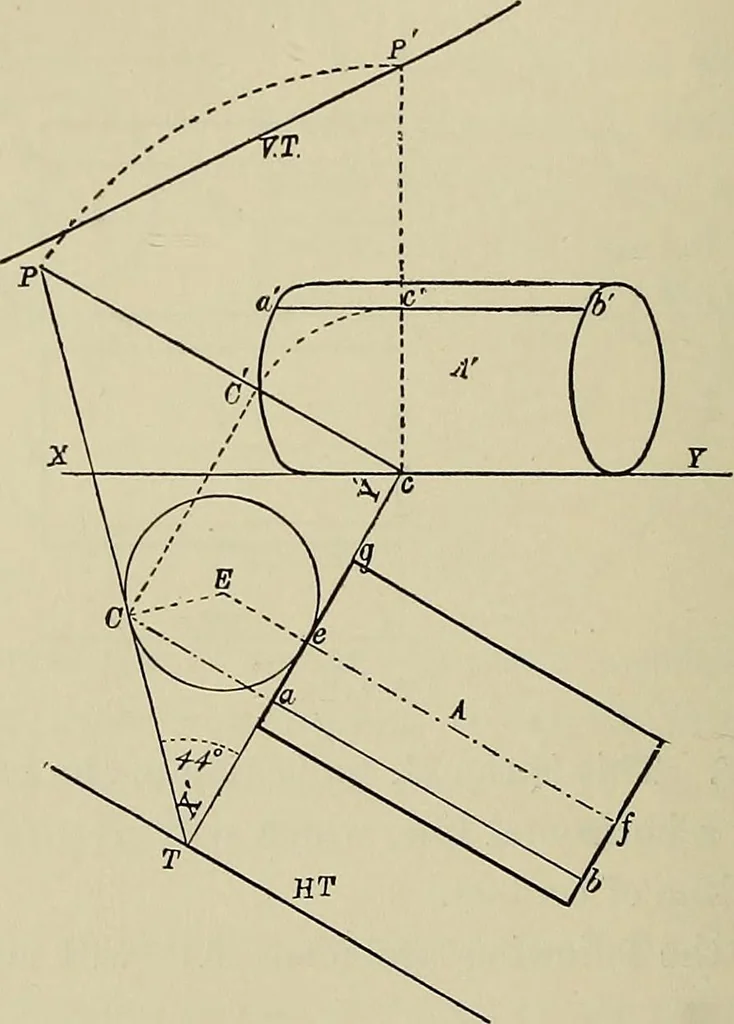

it to E,making eE equal to eg. With E as centre, and radius Ee, draw 2b 370 SOLID GEOMETRY a circle. This is the end elevation. At the intersection of thetwo ground lines, c, draw cP perpendicular to XY. This willrepresent the edge of the V.P. Draw the line TP at an angleof 44° with XT, tangential… … Fig. 171. on the Y.P. To do this, draw cY perpendicular to XY. Withc as centre, and radius cP, draw an arc till it meets cP in P.This is one point in the V.T. If we were to draw a line throughthis point to where the H.T. meets XY, it would give us theV.T., but as this point is beyond the limit of…
Geometrical drawing
