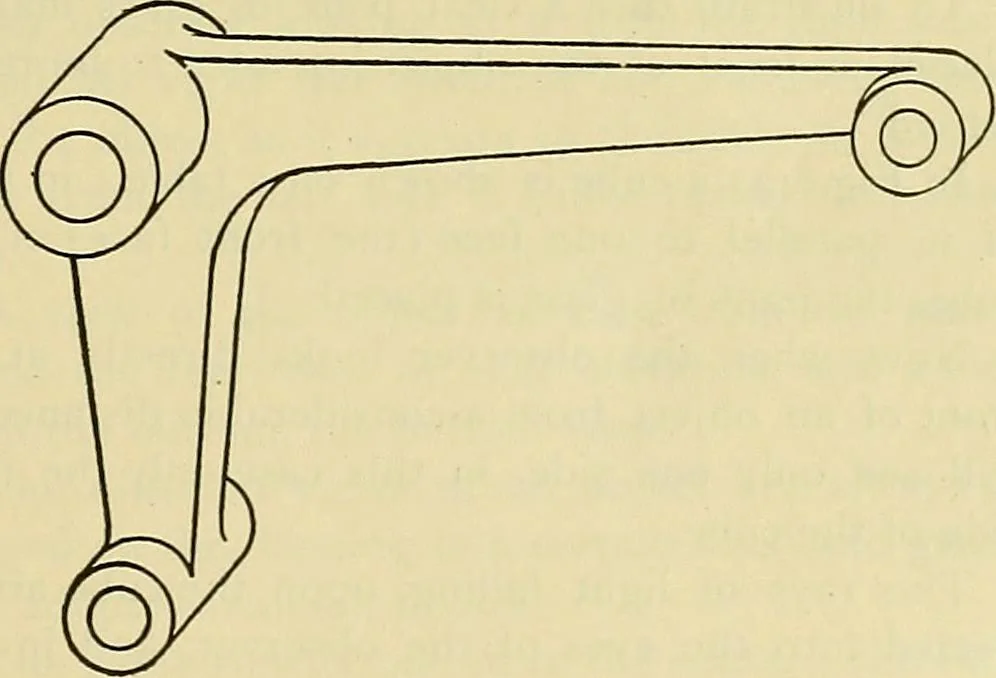

Fui. 231. … Fig. 232. 128 ROGERS DRAWING AND DESIGN. ORTHOGRAPHIC PROJECTION. Isometric drawing and cabinet projection, whileshowing the object as it really appears to the eyeof the observer, are neither of them very convenientmethods to employ where it is necessary to measureevery part of the drawing for the…
