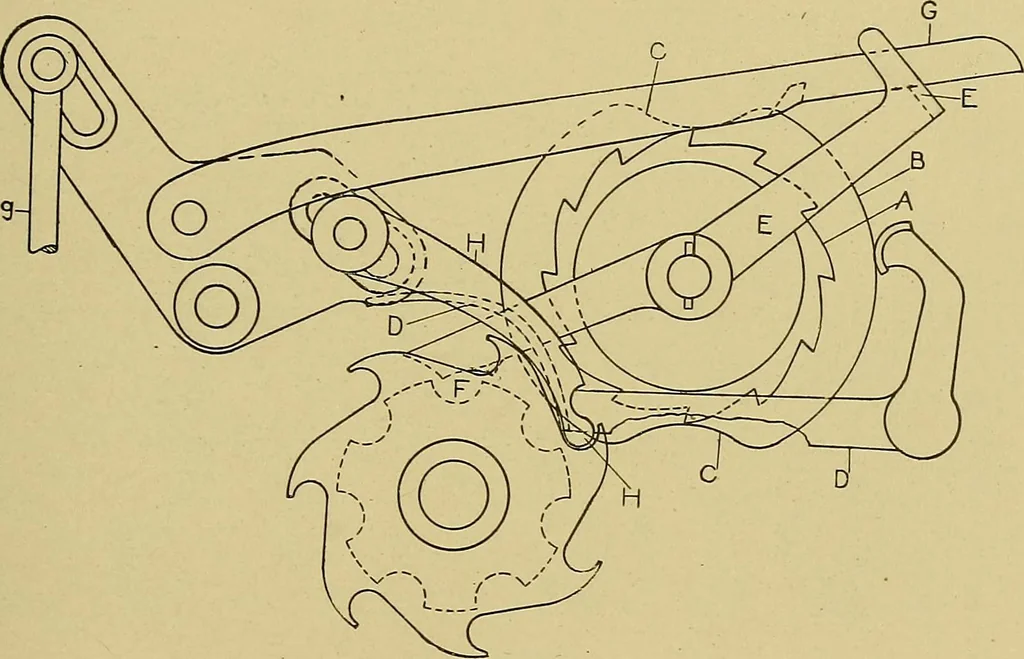

isc having two indentations the value ofthe multiplier is half the number of teeth in the ratchet. The valueof a multiplier may readily be doubled by attaching a piece of tmto the disc so as to cover up one indentation, when its value willbecome double the whole number of teeth. The disc multiplier… … Fig. 114. Upper Box Motion. (Fig. 116) fixed on the pick cam shaft, one part of which actu-ates, through the connections, the oscillatmg lever on which aremounted the drivmg pawls. A disconnector, which prevents thedriving rod from working when the filling breaks, is actuated bythe smaller part of…
