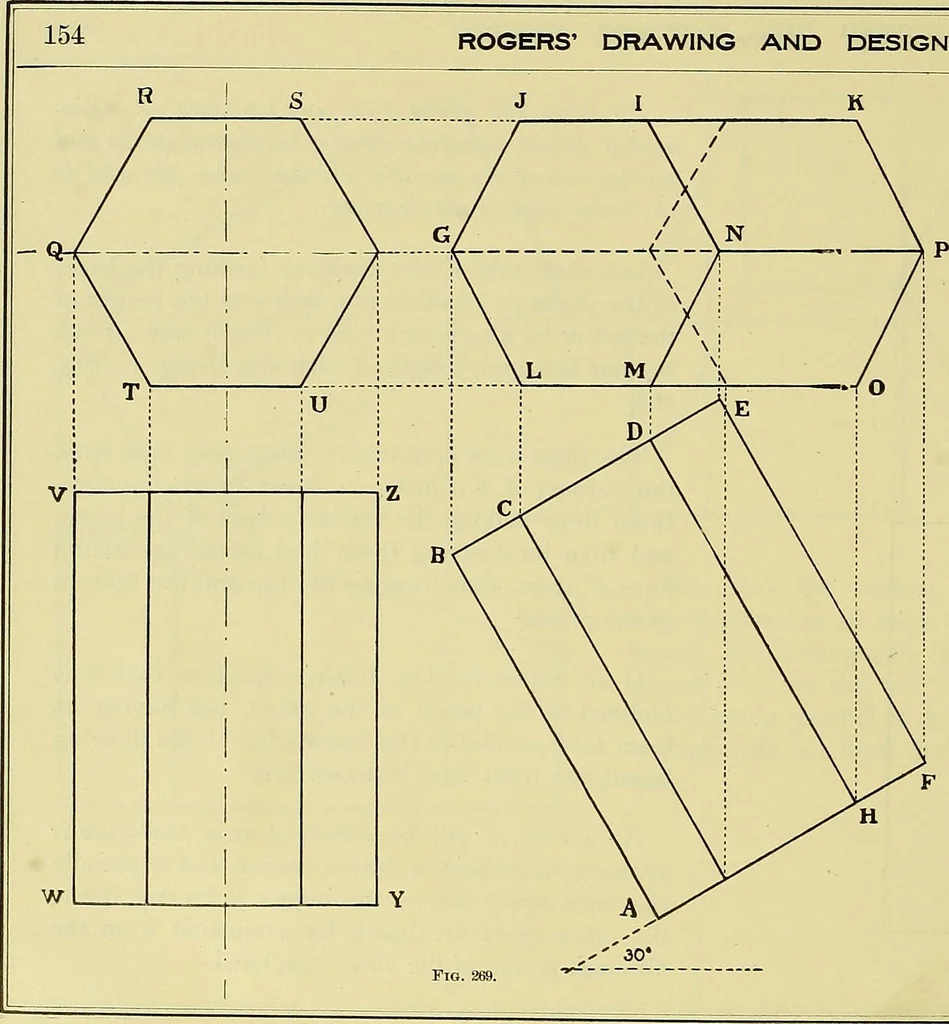

hus forming the top and the bottomof the prism. If an object is to be drawn, placed so that it isinclined to the plane of the paper, but having itsfront face parallel to the lower edge of the drawingboard, the front view is drawn first. As a rule it will be observed that that view isdraivn first,… … Let it be 7^equired to dratv thetop view and front view of thesame prism as in the same exer-cise, but placed so that tivo of itsparallel vertical sides are paral-lel to the lower edge of the draw-ing board and tlie base inclined tothe plane of the paper at an angleof 30. Draw the front view agd…
