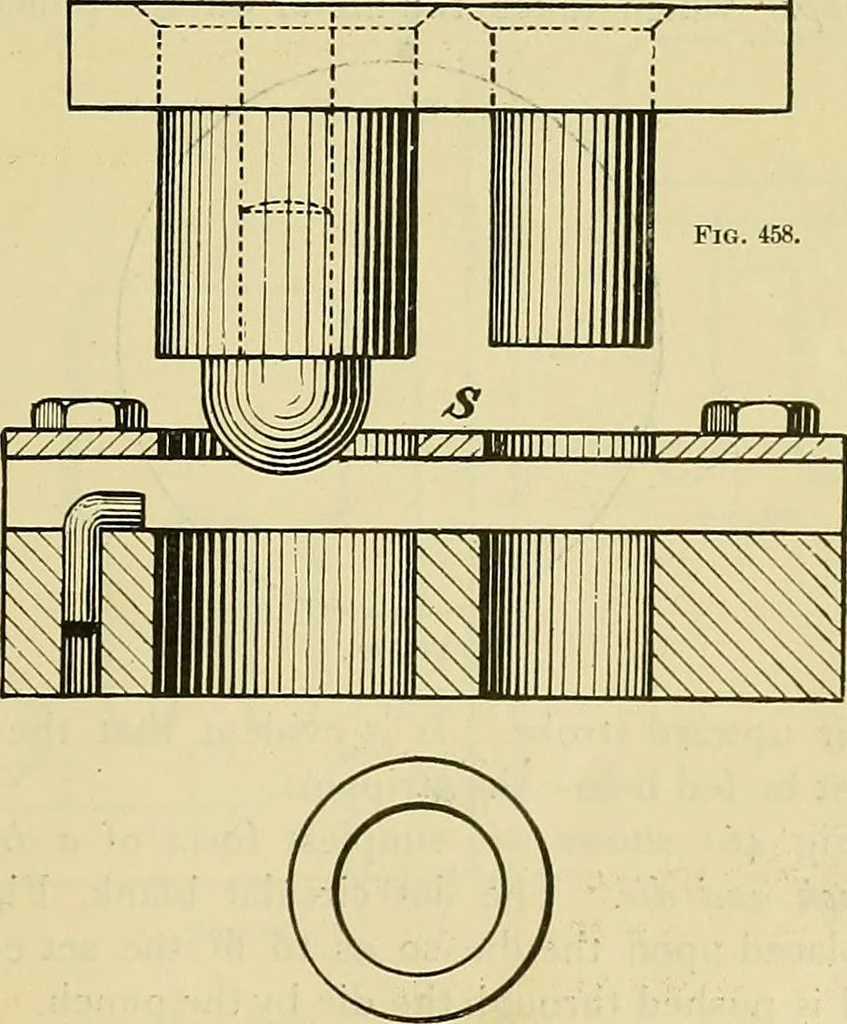

Fig. 458. … KiG. 459. 310 ROGERS DRAWING AND DESIGN. die from the side of the smaller hole. The smallpunch will cut a hole in it equal to the inside diam-eter of the washer, as shown in Fig. 456 ; the metalis then advanced and at the second stroke the largepunch will cut out the complete washer, while thesmall…
