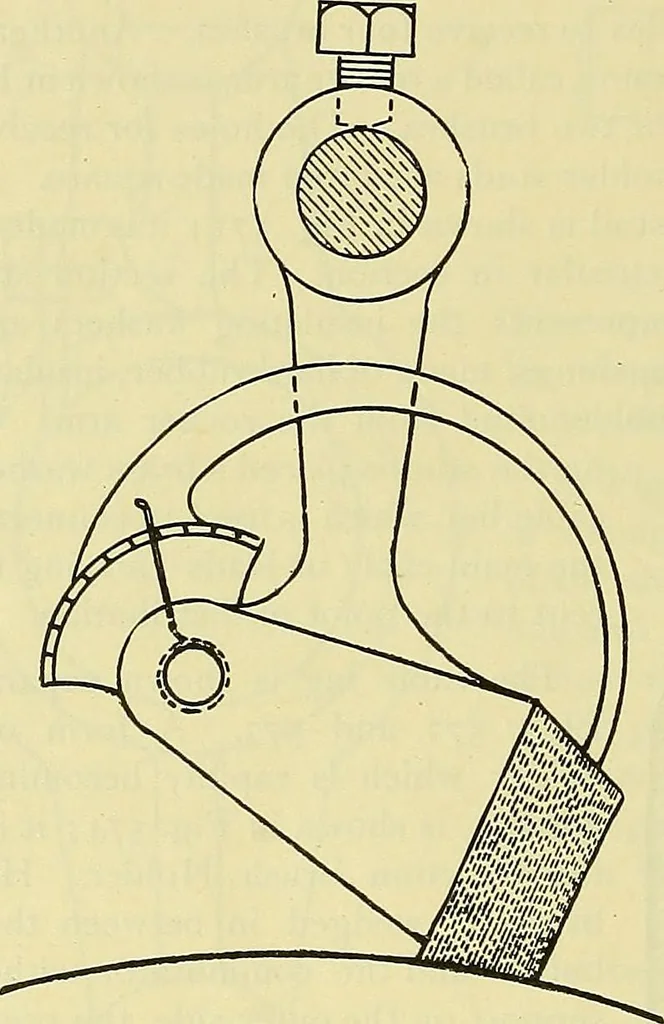

lder which is rapidly becoming mostpopular, is shown in Fig. 574; it is calledthe Reaction Brush Holder. Here thebrush is wedded in between the brushholder and the commutator without anysupport on the outer side, the pressure ofthe curved lever forcing the carbon brushagainst the inclined face of… … Fig. 574. the notches on the lever, thus regulating the pressureof the lever to any desired degree. The magnet frame may be cast in one or moreparts, together with the pole pieces, or the polepieces may be bolted to the frame. The magnetframe must be rigidly secured to the base. Thebearings or…
