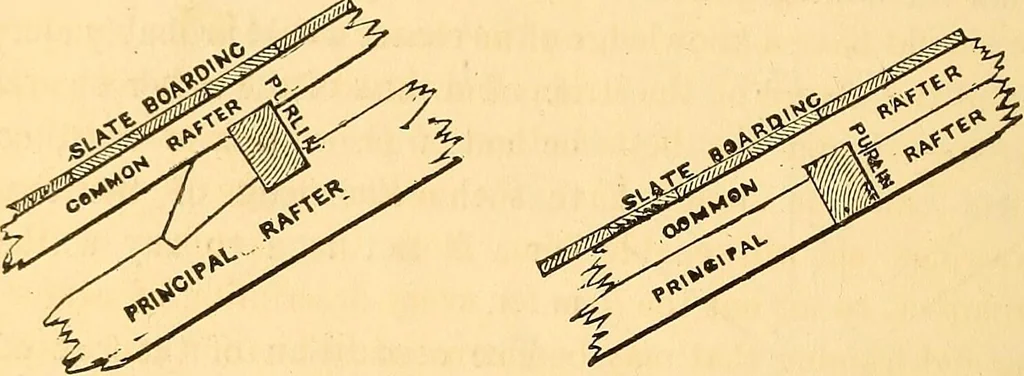

hown out by the dotted lines on the right-handBide of the cut. The dotted lines on the opposite side of the 406 RUDIMENTS OF THE figure show a similar effect, produced by the shrinking of theking-post, for which there is no preventive but making itof oak, or some other hard wood. The same… … of fixing purlins, which are sufficiently explained by thefigures to need no further description.
