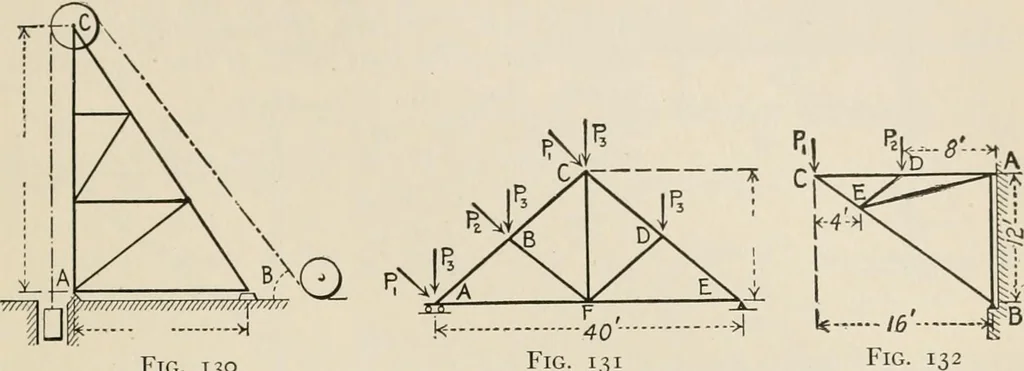

Fig. 129 361 is held by a pin at E. Each load Pi = 500 lbs.; each load Pi = 1000 lbs.; eachload Pz = 2000 lbs. Determine the amount and kind of stress in each member.26i-(i5). The truss represented in Fig. 132 is held by a pin at joint B and by a … Fig. 130 Hf 40- ^ Fig. 131 horizontal tie at joint A. Each load = 1000 lbs. Solve for the stress in eachmember. 262-(i6). The truss represented in Fig. 133 is supported at each end. Eachload Px = 1000 lbs., and P2 = 2000 lbs. Determine the amount and kind of stressin each member graphically.…
