Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 241

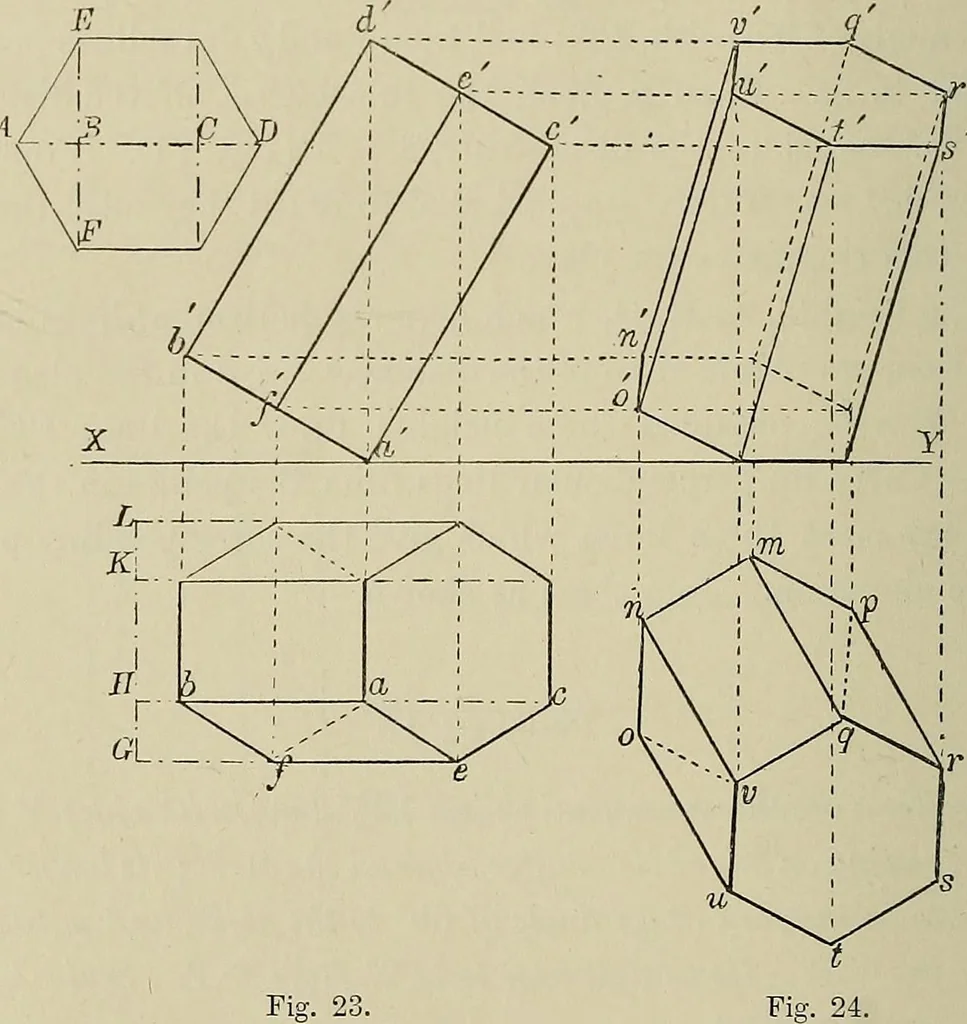

e pointsdraw lines parallel to ac till they meet the line cd. Thiscompletes the elevation. Draw a line 2 below XY, and parallel to it. From L on 220 SOLID GEOMETRY chap. this line let fall a perpendicular, and on it set off the distancesL, K, H, Gr equal to the distances A, B, C, D of hexagon.… … Fi. 23 Peoblem 14, To j)roject the same p7ism standing on one of its shorter edges onthe H.P., ai an angle of 30 loith V.P., with its longeredges inclined at an angle of 60° vAth the H.P., and invertical ^/cMies inclined at an angle of 60 to V.P.; itsnearest corner to he 3 from V.P. Scale -^ofutt…
Geometrical drawing
