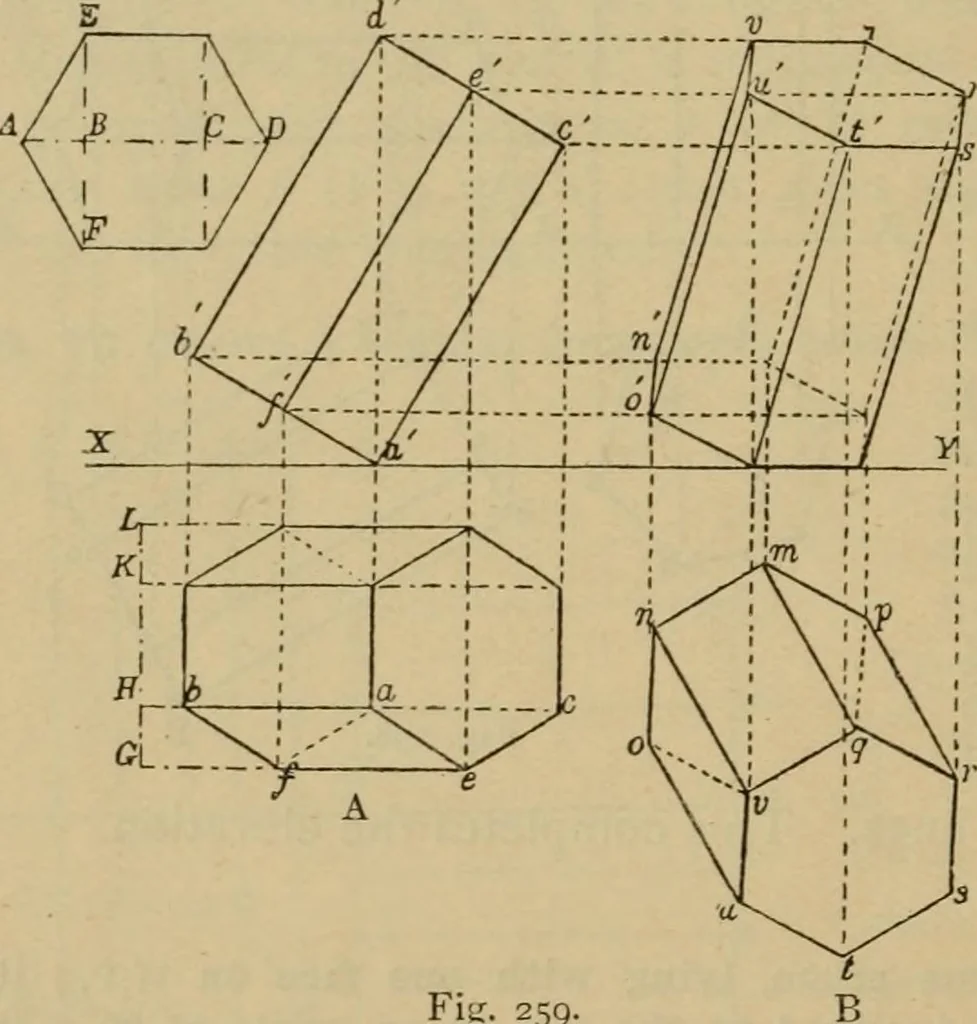

esE,B,Fof hexagon. Fromthese points drawlines parallel to cictill they meet theline cd. This com-pletes the elevation.Draw a line 2 below XY, and parallel to it. From L onthis line let fall a perpendicular, and on it set off the distancesL, K, H, G equal to the distances A, B, C, D of hexagon.… … 259- SIMPLE SOLIDS. 141 188. To project the same prism standing on one of its shorteredg-es on the H.P., at an angle of 30^ with v.p., with its longeredges inclined at an angle of 60° with the H.P., and in verticalplanes inclined at an angle of 60° to v.p.; its nearest comer tobe 3 from v.p. Scale…
