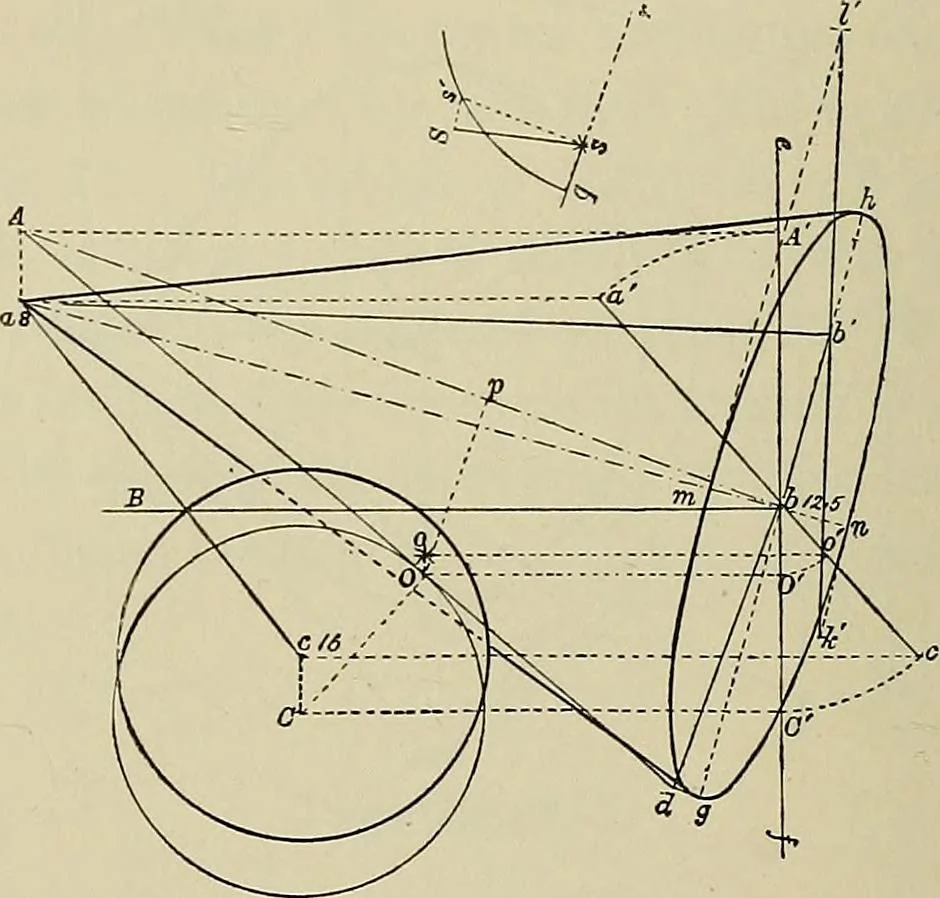

by Prob. 165, the threegiven points being t, h, and jJ- Index the scale from the pointsp and h. 428 SOLID GEOMETRY Problem 188. The axis of a cone with its base inclined to the H.P. heing given, aslaell as the centre of a sphere, to determine the projections ofloth solids, ivith their point of… … Fig. 228. the plan of the sphere. Join B&, and through 5 draw cf perpen-dicular to it. Assume ef to be a ground line, and iind the elevations of thepoints a and c, working from the level of h, as ac (Prob. 162).Join etc. Construct these points on to the plane of reference,as AC, and find their…
