Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 514

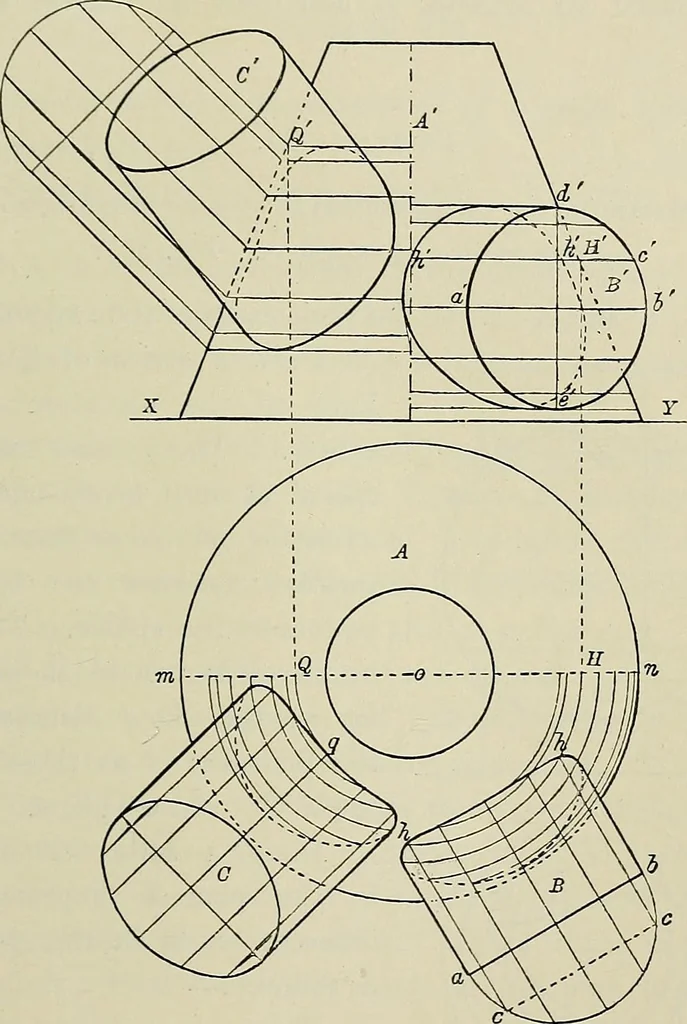

on plan. From where thehorizontal line hh meets the side of the frustrum in H, draw aXDrojector till it meets the line mn in H. With o as centre, andradius oH, draw an arc till it meets the corresponding parallel I INTERPENETRATION OF SOLIDS 493 lines on plan in h, h. The line cc shows the… … Fig. 280. Find the remaining points in the same manner, and draw afair curve through them. To determine the line of interpenetration between thecylinder C and the frustrum. Find the supplementary elevationof C, with the divisions and parallel lines, as described in Prob.229 ; also draw horizontal…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
