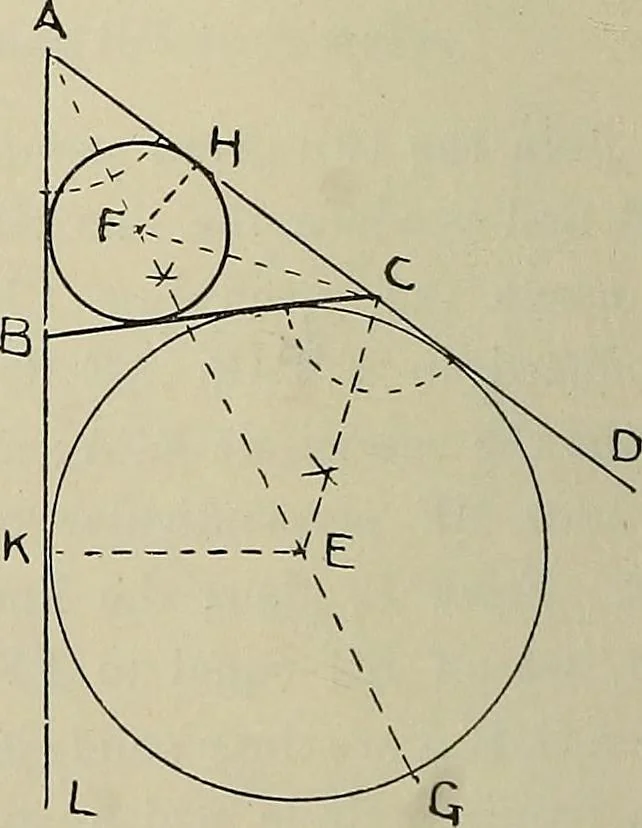

93. To draw an inscribed and an escribed circle, tangential tothree given straight lines, forming a triangle ABC. Note.—An escribed circle is alsocalled an excircle. Bisect the angles BAC andACB by lines intersecting in E.Erom E draw the line EH perpen-dicular to AD. With E as centre,and EH as… … Fig. 157. TANGENTS AND TANGENTIAL ARCS 67 Problem 94. A pri7ici2jle of inscribed and cscriled circles. If a triangle ABC be taken, and AF, BD, and CE,drawn from the three anglesperpendicular to the oppositesides, they will all intersectat the point H. Join thepoints D, E, E. This will forma…
