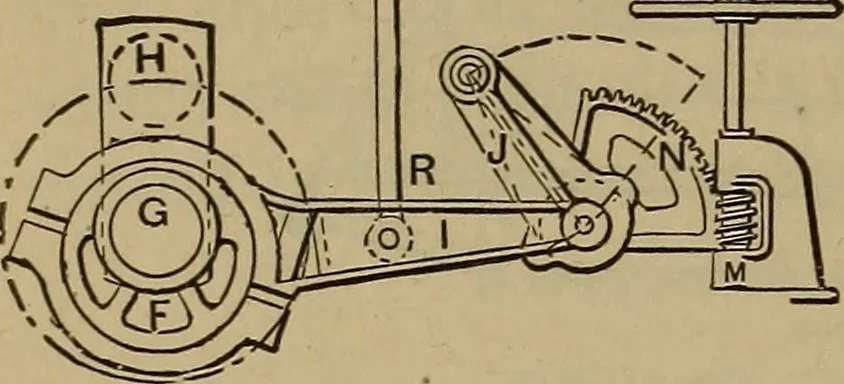

tre of the link. Thevalve-rod and stem are attachedto the eccentric-rod /at the pointwhich will give the desired throwto the valve. If the centre ofthe link J be thrown over to theright, the engine will reverse,and at intermediate positions thethrow of the valve is diminishedand cut-off takes… … Fig. 195.
