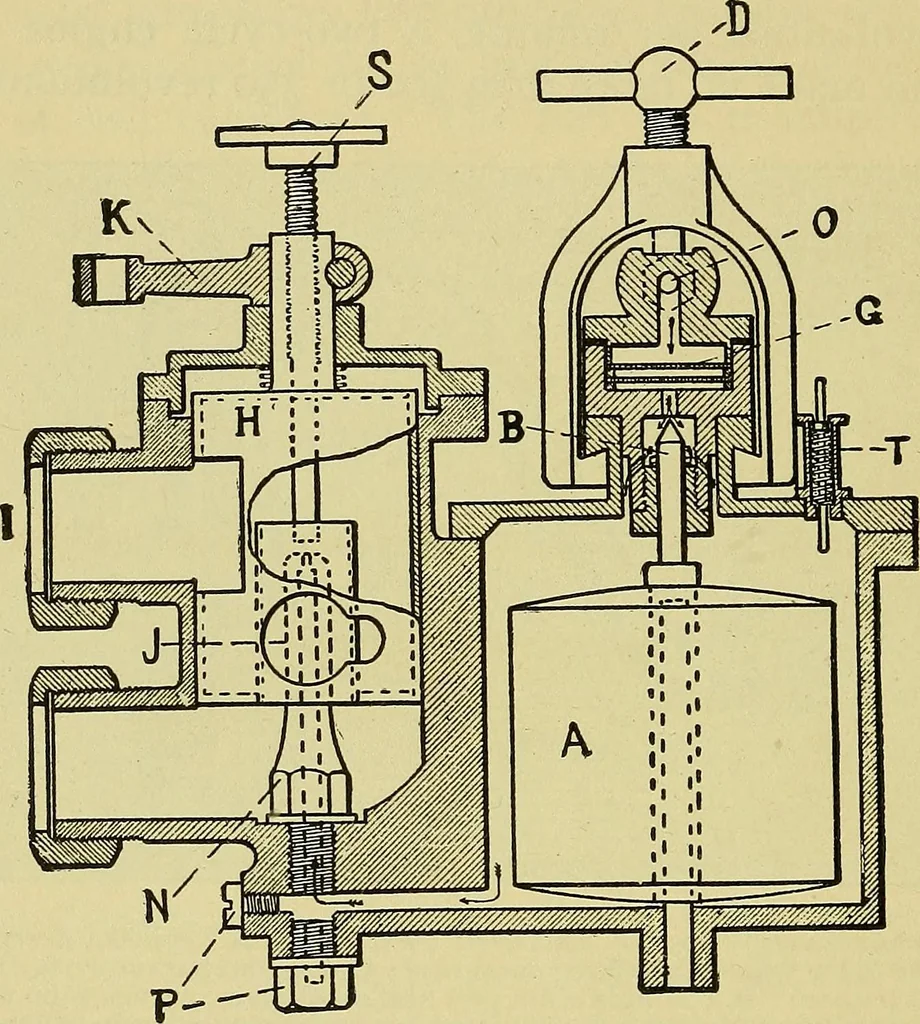

gh which it may- be-drawn as -- 172 SELF-PROPELLED VEHICLES, required. The motor proper consists of three parts; the car-buretter, or vaporizer, in which the liquid hydro-carbon is trans-formed into vapor; the cylinder, to which it is admitted by suc-tion, mixed with a suitable supply of pure air,… … mmm^wA Fig. 135.— Section through a typical Float-Feed Carburetter. This particular device is theone shown in the previous cut. Here A is the hollow cylindrical float; B, the spindleof the needle valve; C, tube for admitting hot air around base of spraying nozzle; D,adjusting screw for the needle…
