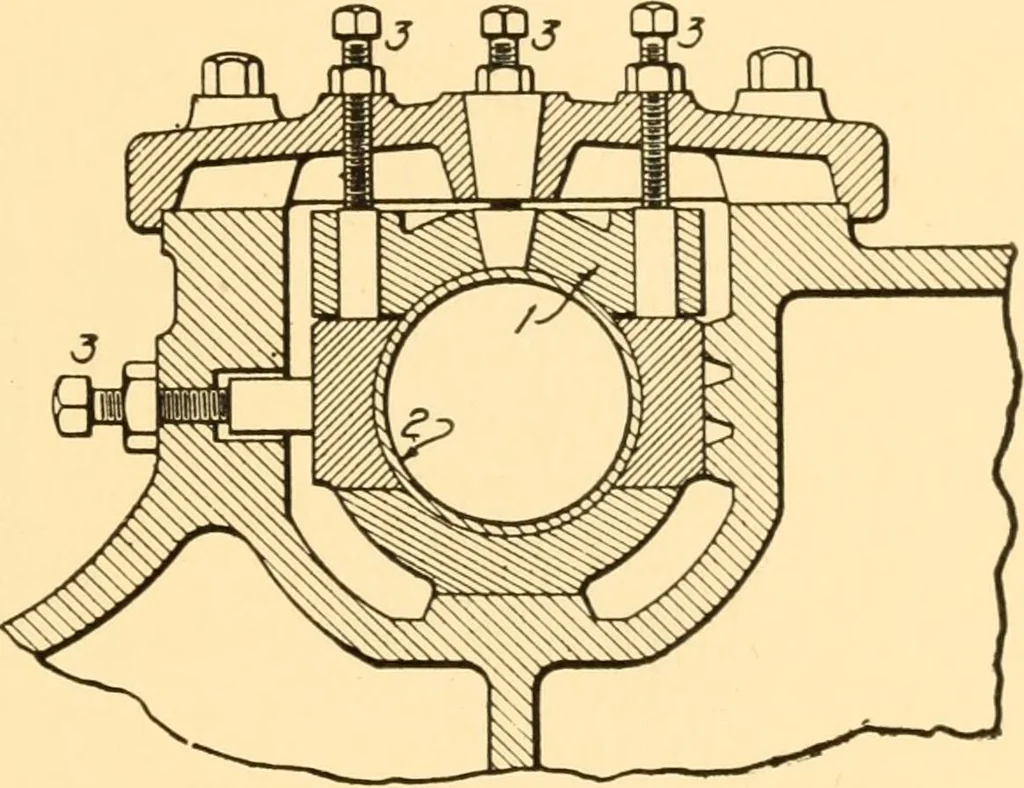

a babbitt lined, quarter-boxed main bear-ing of ample size, Fig. 18. To provide for both vertical and lateraladjustments it consists of four parts carefully machined on all sidesand scraped to fit accurately. This bearing is so constructedthat the bottom piece can be removed by slightly raising the… … Fig. 18. Section of Babbitt Lined, Quarter-Boxed Main Bearing 24 STEAM ENGINES There are many other types of main bearings besides thosementioned, but they differ only from those already described insome of the minor details. The value of these details varies throughwide limits, each builder…
