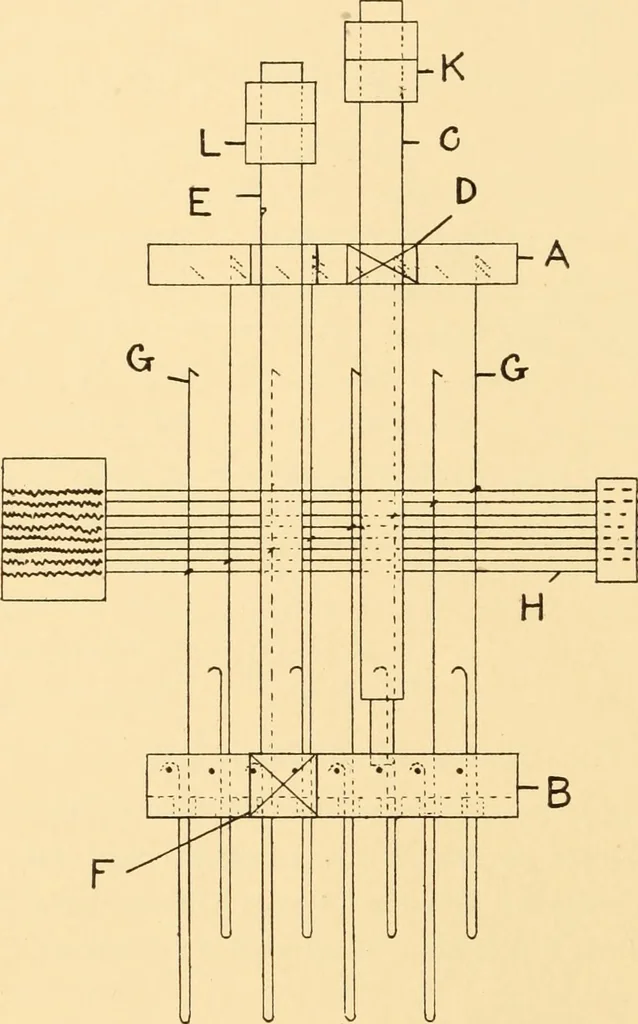

section through thegriffe blades and upper and lower reciprocating boards, a indicatesthe top and usual griffe bars; b the resting or suspension hook 256 JACQUARD MECHANISM AND HARNESS MOUNTING. board, free to rise or fall. The griffe a is connected to the spindle cat the position d and the board b… … Fig. 264 The designs are painted and the cards cut in the usual way.There are two Jacquard cross heads k and l, and two head leversand reciprocating rods and a double throw eccentric as in double liftmachines, but the eccentric is set screwed fast to the crank shaft, sothat as the cross head k…
