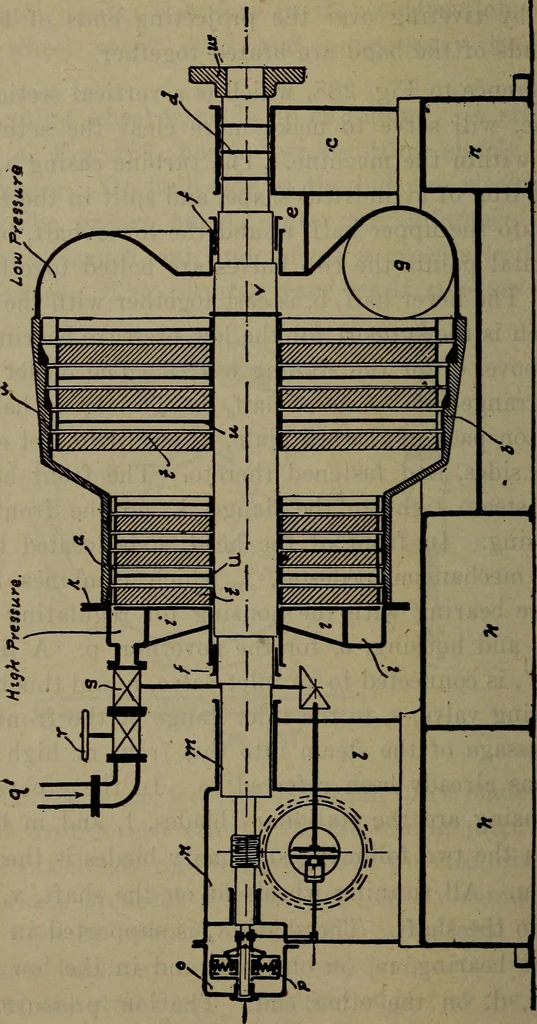

lades, t, and in the spacebetween the two following stationary blades is the runningwheel, u. All running wheels fit on the shaft, v, and arekeyed to the shaft. The shaft, v, is supported in the highipressure bearing, m, on one end, and in the low pressurebearing, d, on the other end. The low… … Fig. 288 hamilton-holzwarth steam turbine Sectional Elevation Hamilton-Hohwarth Steam Turbine 673 shaft. This coupling allows connection to be made tothe generator^ pnmp^ or blower^ which is to be driven bythe turbine. The flow of the steam from^the inlet valve^ r^ to theexhaust outlet^ g^ and the…
