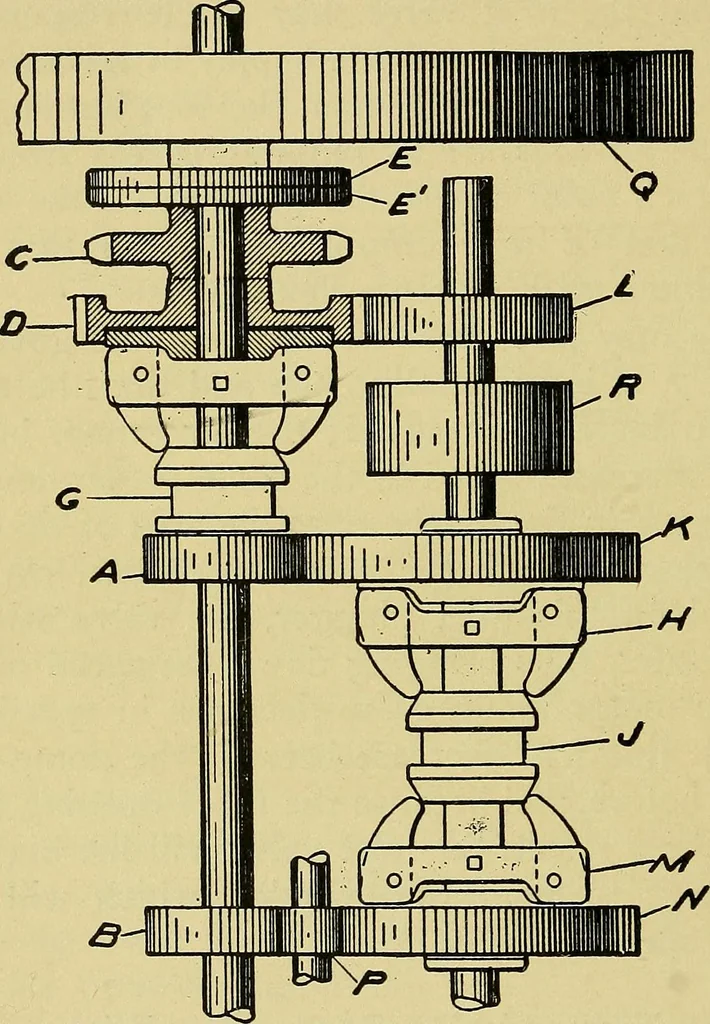

eed forward, the clutch, F, isthrown on by shifting the thimble, G, thus bringing the sleeve,carrying the sprocket, C, and the gear, D, into operative relations 374 SELF-PROPELLED VEHICLES. with the main shaft through the friction clutch, B. The secondspeed forward may be obtained by throwing in… … Fig. 284.—The Winton Change Speed and Reversing Gear. A and B arespur gears keyed to the crank shaft of the motor. C is a sprocket, andD a gear, of one piece with it, which turn loose on the main shaft. Eand E are friction discs, which connect C and D to the main shaft whenthe clutch, G, is thrown…
