Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 253

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 253

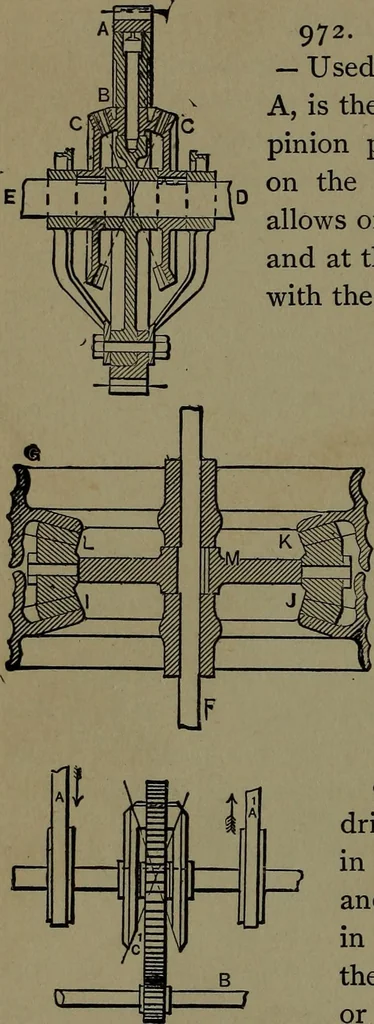

971. CHANGE GEAR MOTION.—The shaftsA and B are disconnected, and carry a loose hub andspur wheel in which is pivoted the bevel pinion T.The bevel wheel C is fast on shaft A, and D is faston shaft B. Any motion given to the central spurgear either way by the pinion shaft E varies the speedof the… … 972. DIFFERENTIAL DRIVING GEAR. — Used on the driving shaft of motor carriages.A, is the driven gear from the motor; B, a bevelpinion pivoted laterally; C, C, bevel gears faston the divided shaft E, D. This arrangementallows one wheel to advance in turning a curve,and at the same time to receive an…

Mechanical movements

Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
