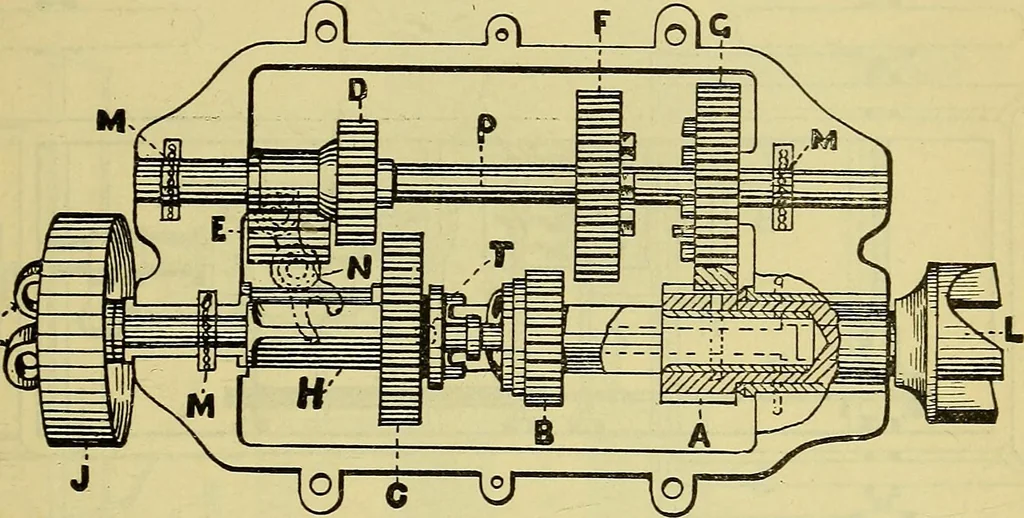

Decauville transmission, the driving shaft ends in asingle spur gear constantly in mesh with the large end gear onthe parallel second shaft, and bored longitudinally to serve as thebearing for the slide-gear shaft squared through its entire lengthbetween bearings and carrying two gears on a sliding… … Fig. 298.—Diagram of the Peerless Transmission. A, pinion on shaft coupledto clutch at L, B, C, pinions on sleeve sliding on square section of shaft,H, journaled into A, as shown.in sectional view; D, pinion on counter-shaft, P, giving low speed in mesh with C; E, reverse pinion on yokepivoted at…
