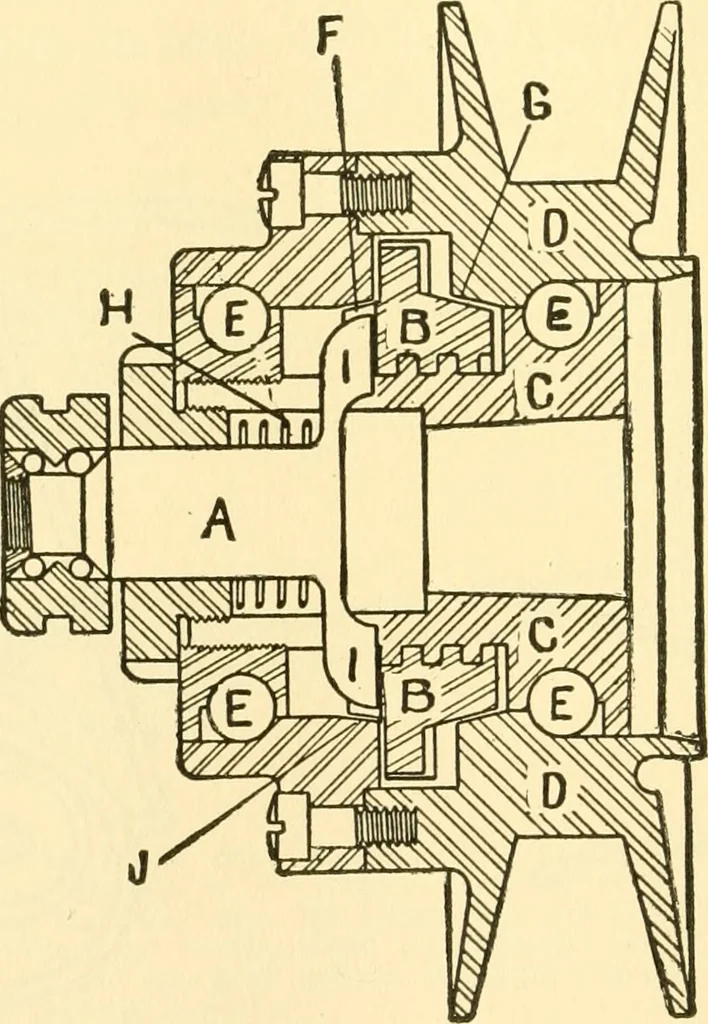

obtained, the handle bar ignitionswitch should be closed, and the exhaust valve lifter released. 374 AUDELS ANSWERS Ques. What adjustments should be made while riding?Ans. As soon as the engine begins to operate, the sparkshould be retarded and adjusted together with the throttleto meet the speed… … Fig. 283.—Emblem free engine pulley. The clutch block B is shown inidle or coasting position. To connect the pulley D with the drive shaft orscrew C the locking pin A is withdrawn from the slot F in the nut B permittingthe nut B to shift over against clutch face G on pulley D and causing all…
