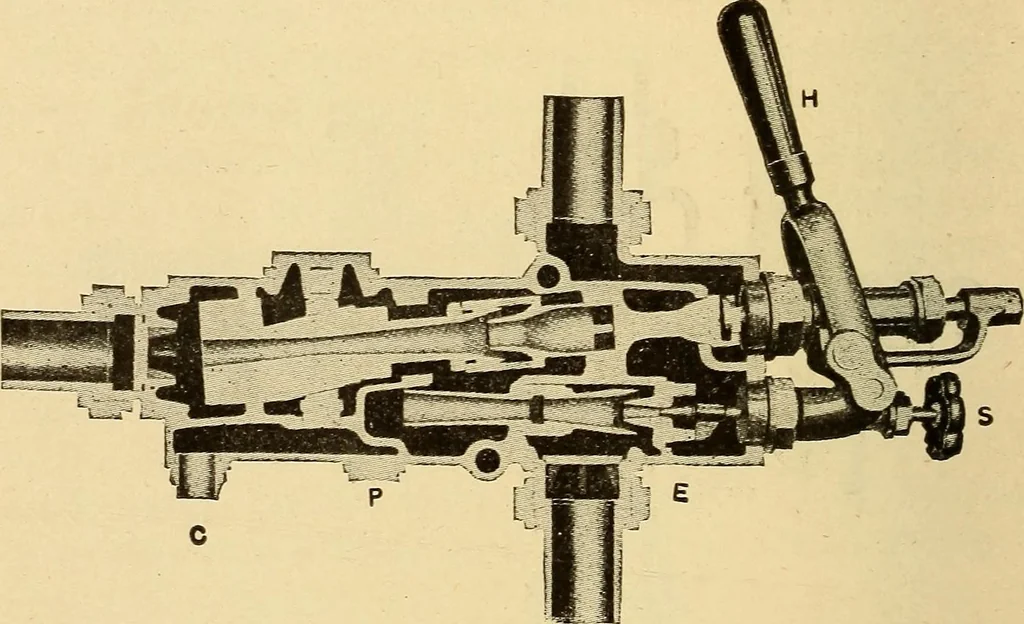

held in place between the two flanges w hichare bolted together, as shown. This design lessensthe liability of marring or breaking the tubes in theirremoval for inspection or repairs. 168 LOCOMOTIVE APPLIANCES. This injector is interchangeable with the otherprincipal injectors used, the size and… … Fig. 13. The Niagara Locomotive Injector.(Sectional View.) The forcing water and steam nozzles are bothconnected directly with the spindle operated by thehandle (H). The overflow valve is in a vertical posi-tion. The regulation is effected by the spindle (S)reducing the quantity of steam supplying…
