International Library of Technology · Scranton, International Textbook Co. · leaf 408

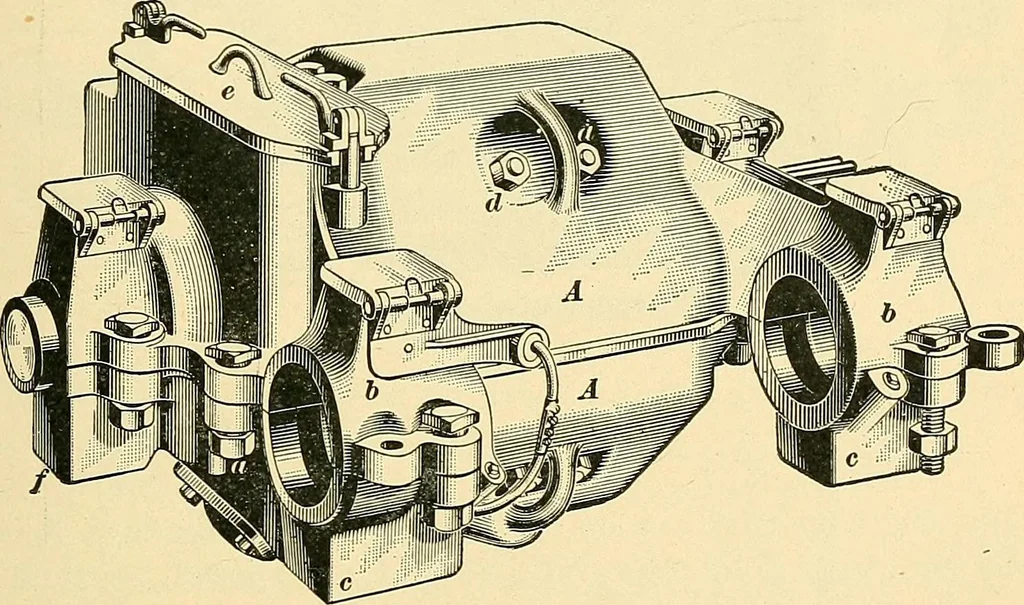

all slots. The G. E. 1,000,G. E. 52, and G. E. 54 are much the same in general appear-ance. We will select the G. E. 52 motor for illustration. G. E. 5a MOTOR. 69. Motor Frame.—Fig. 44 shows the general appear-ance of the G. E. 52 motor. The general shape of the fieldframe is hexagonal; it is made… … Fig. 44. are provided with grease boxes, and the grease or oil is fedon the axle by means of pieces of felt from underneath aswell as from the grease cups on top. The bolts d, d holdthe pole pfeces and field coils in place. The removablecover e allows access to the commutator and brush holders.The…
Electrical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Electric engineering.], 1902, leaf 408](https://img.insideoutlibrary.com/img/1024/ia-electricengineer04inte-408-176.webp)
