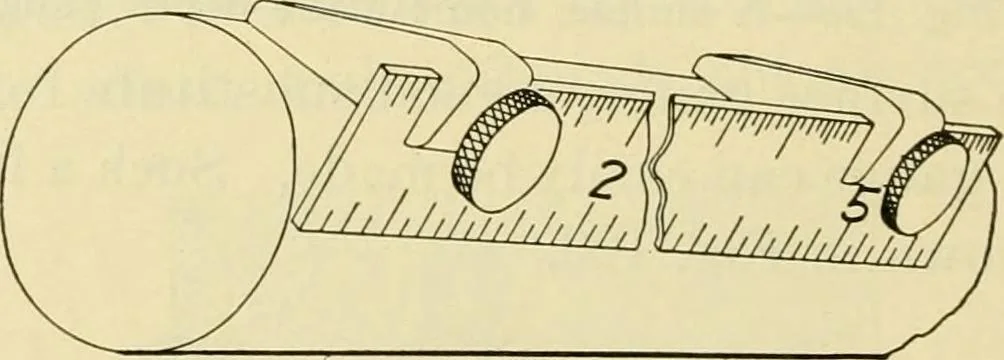

Fig. 122—Showing one use of the protractorwork, the protractor would be held on the work as shownin Fig. ,122. A very useful addition to an ordinary scale is shown in … Fig, 123—A key-way scale and its use Fig. 123. The two small blocks attached to the scale areknown as key rule blocks and by their aid it is possible tolay out a straight line upon a circular piece of work. Ifthe rule is used without this it is not known whether-theline is straight or not. CHAPTER…
