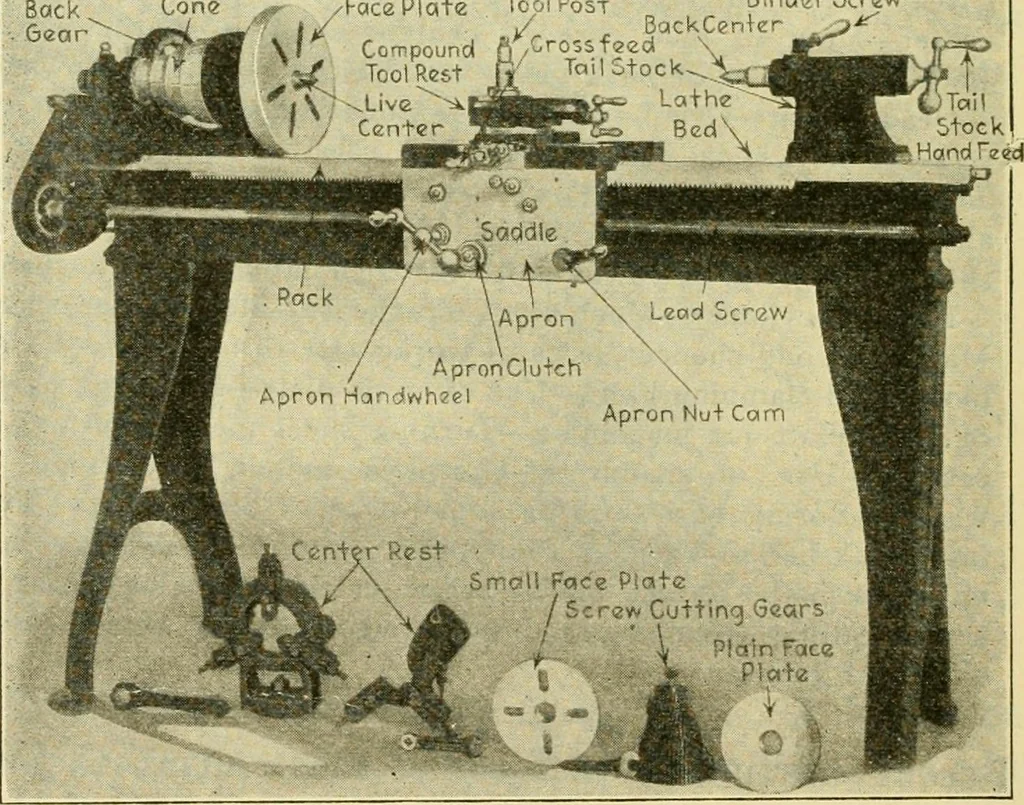

The saddle which holds the compound sliderest is moved along the lathe bed by means of the apronhand wheel. This is accomplished through a rack andpinion system and the rack will be noticed at the side ofthe lathe body near the top. The compound rest has twohandles, one Avhich feeds the tool… … Fig« 179—A screw-cutting lathe and the names of its various parts noticed on the top of the compound rest and the tool isheld in place by the screw at the top of the post. Thisparticular portion of the lathe should be well taken careof as inaccuracy in the work being turned will result ifits parts…
