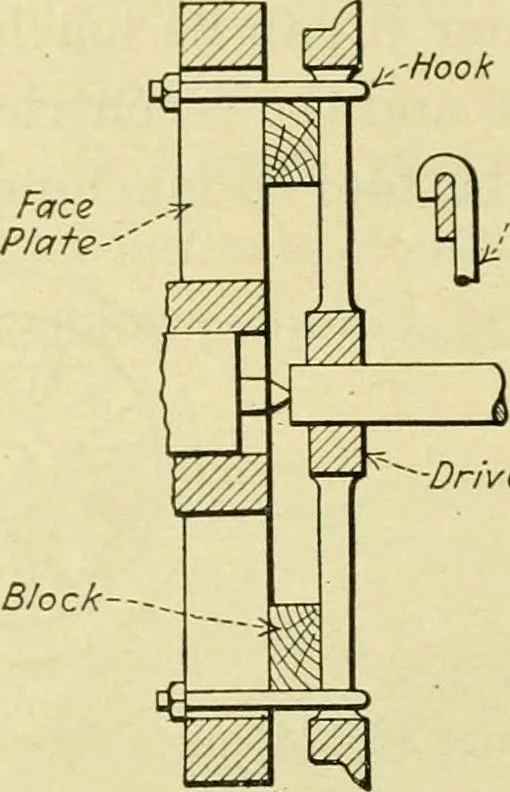

inFig. 207. Two small wooden blocks are placed betweenthe flywheel and the face plate. The driver is held tothe plate by means of two small hooks which can be bentto shape from a steel rod and threaded at one end toaccommodate a nut. The live center of the lathe is put 174 Shop Practice for Home… … Hook ^-Driver B/ock—^ Fig. 207—A model locomotive driver mounted in the lathe for facing Another method of turning such a driver is sho^\Ti atFig. 208. Here the wheel is mounted upon what is knownas a mandrel. This mandrel, unlike the one previously ^<-F T •lywhcd ...-Driver Moinctr«l E-D=3<…
