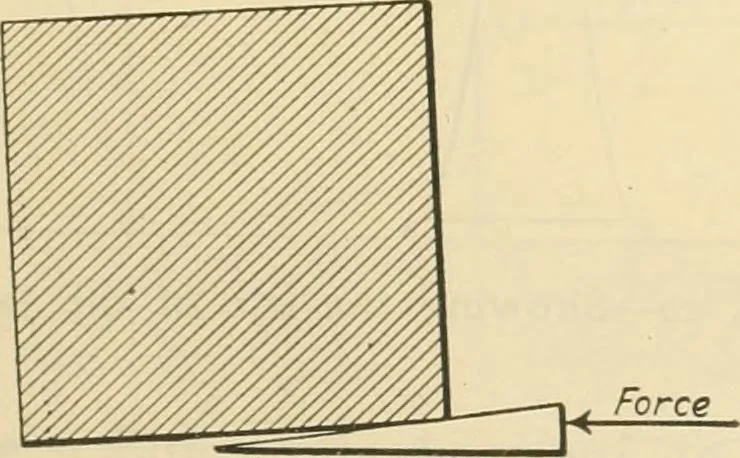

Fig. 17—Moving a weight up an inclined plane weight D, the first weight could not be lifted until anothersmall weight was added to D. In other words, the weightD would have to be greater than C to lift it. To prove … Fig. 18—Showing the use of the wedge the mechanical advantage of the inclined plane, refer-ence is made to Fig. 17. The weight E is able to lift theweight F up the inclined plane. The weight E is smallerthan the weight being lifted, while in the case illustratedat Fig. 16 the weight D had to be…
