Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 42

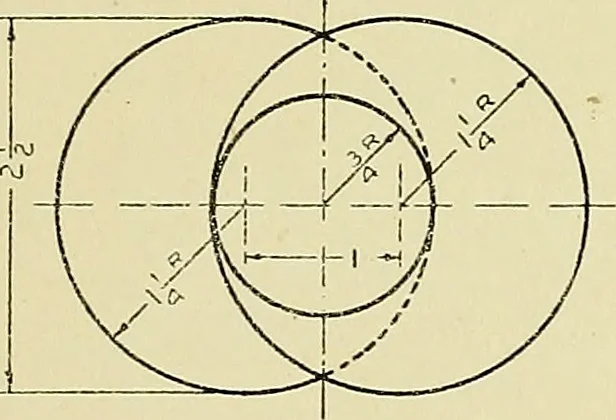

Figure 16 ECCENTRIC SHiQFT INSTRUCTIONSComplete the working dq/^wii\gQBsvy 6 perspeictive: sketch ih this5PBCE I … PUi^TE NOMTE Nr=iM£ Plate 12 40 SHOP SKETCHING Plate 13 Plate 13 is a dimensioned perspective of a buffet,from which a two view working sketch is required.This sketch must be dimensioned completely, and in-side construction must be indicated. The studentsknowledge of furniture construction will be…
