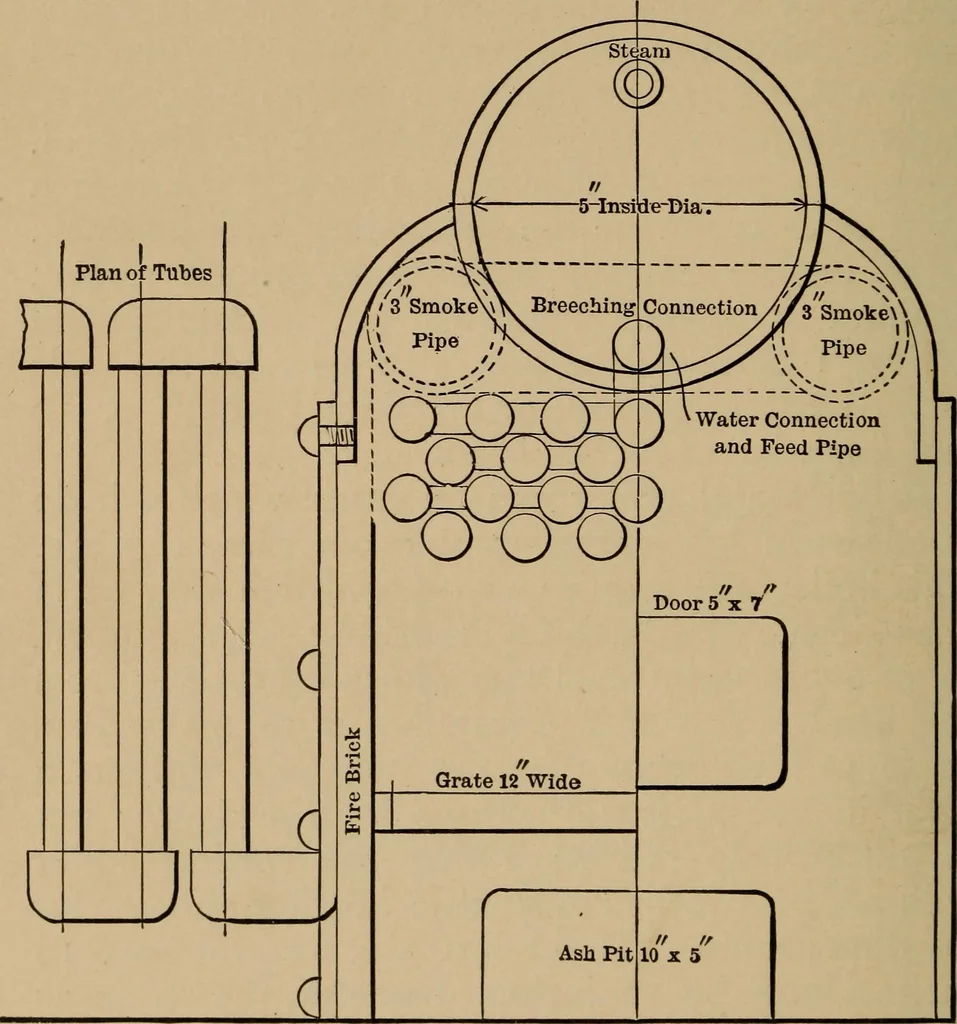

its dimensions. These last are, we will say, 16inches long by 12 inches diameter, the same asthe vertical boiler; but the effective heating sur-face is the bottom and the internal flue, altogetheronly 408 square inches, or a little less than 3square feet. This would amount to nothing atall for… … Fig. 31. A horizontal water-tube boiler is another affair,and, in the same space as the horizontal boilerjust described, will give a great deal of power. SMALL ENGINES AND BOILERS. IO5
