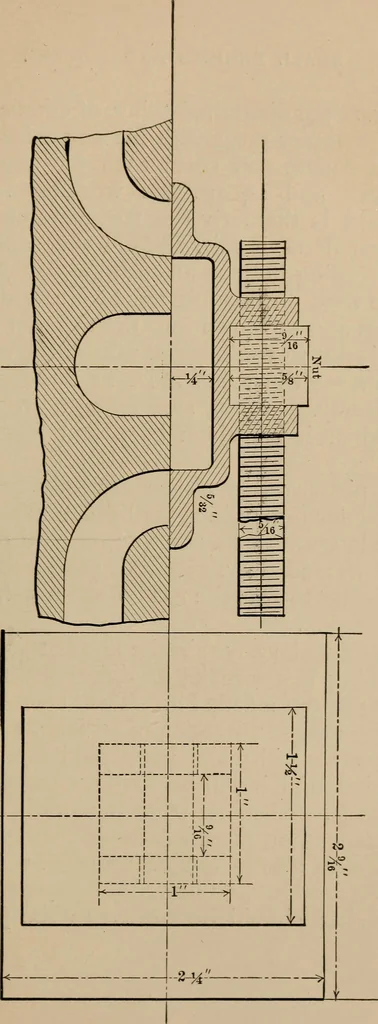

they are not to amateurs, to whomthis book is addressed ; it is from the small things,apparently small, that great annoyances and extrawork arises if they are not properly executed. The valve should also be of hard brass ; put inthe vice, and face it off to the proper length asshown by the drawing,… … Fig. 12. 46 SMALL ENGINES AND BOILERS. cylinder, as per diagram, having, of course, dressedout the cylinder ports with file and chisel so thatthey are square and true; then put the valve inthe chuck and square the working face true.When this is done try the face-plate on the cyl-inder and dress it…
