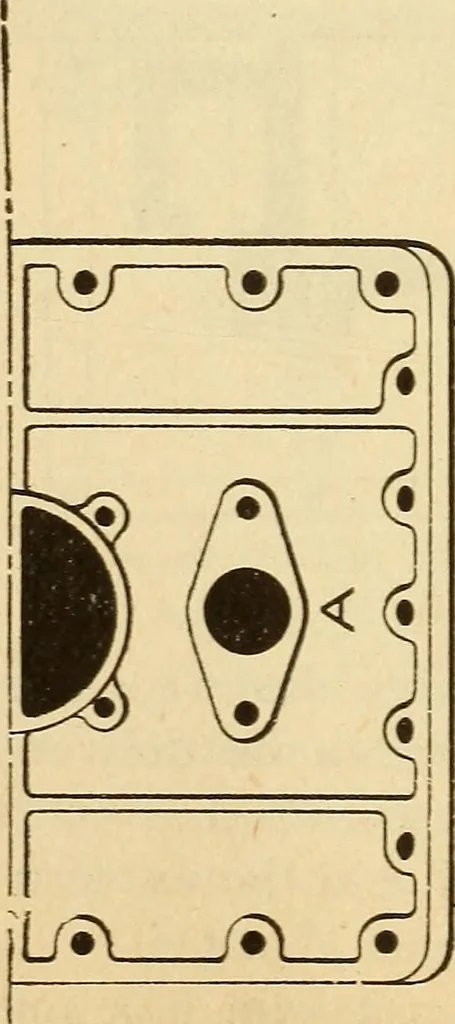

¥lGURE 51 ings B B at each end of the valve seat (see Figs. 51and 52). This causes the steam to be delivered atboth ends of the steam chest and on top of the slidevalve, which covers the ports P P and the exhaust portX X when in its central position (see Fig. 51). The steam chest is a square cast… … jQl s: h i=j • •r • • ^.^ 1 Or m 1 • X- HI^HHHIH • Q- OQ 1 ^» ■ , A • • • • y -^^ ^P 03)—cgr VALVES AND VALVE GEAR 119 top and bottom and resting upon the top of the cylin-der casting. The steam chest cover rests on top ofthis box and the whole is held down upon the cylinderby strong bolts K K,…
