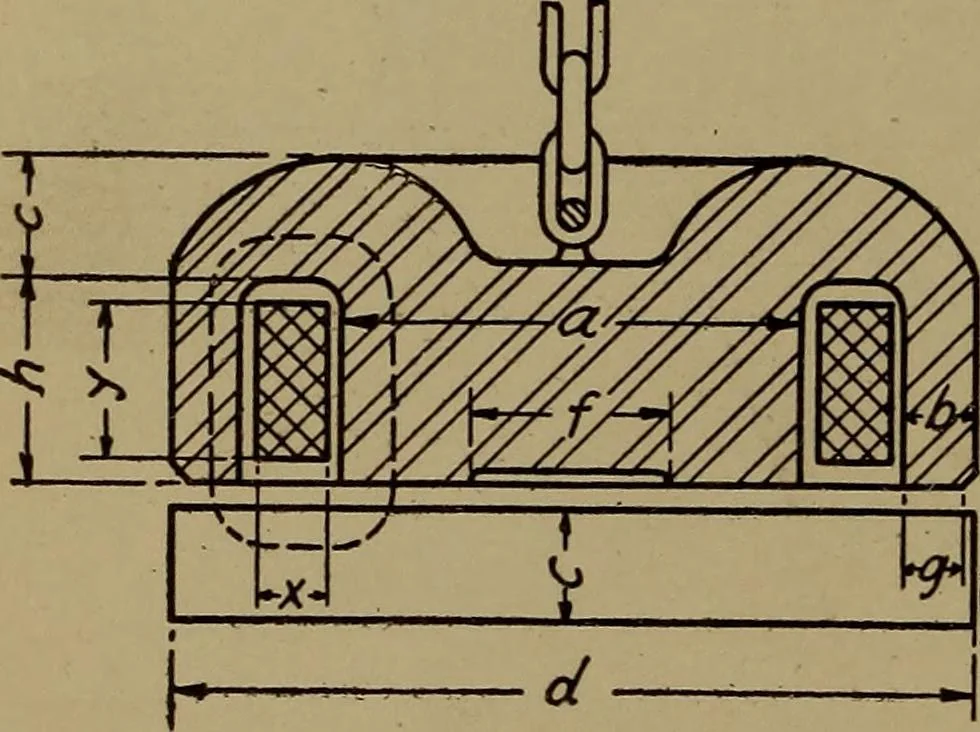

In magnets of this type not only the outsidecylindrical surface of the coil is counted but also the inside sur-face, top and bottom. Exam-pie 29. Design a magnet of the type shown in Fig. 23 which willsupport a weight of 10,000 pounds. Assume 110,000 Unes per square inchin the area of contact and… … Fig. 23. Portative Electromagnet 72130000X1000012 100 000 000 =59.5 8q. in. 284 ELECTROMAGNETS AND COILS 45 This area is, of course, divided between the inner and the outer poles, and thearea of each will be 29.75 square inches. Consider first the inner pole. The areaof contact as determined above…
