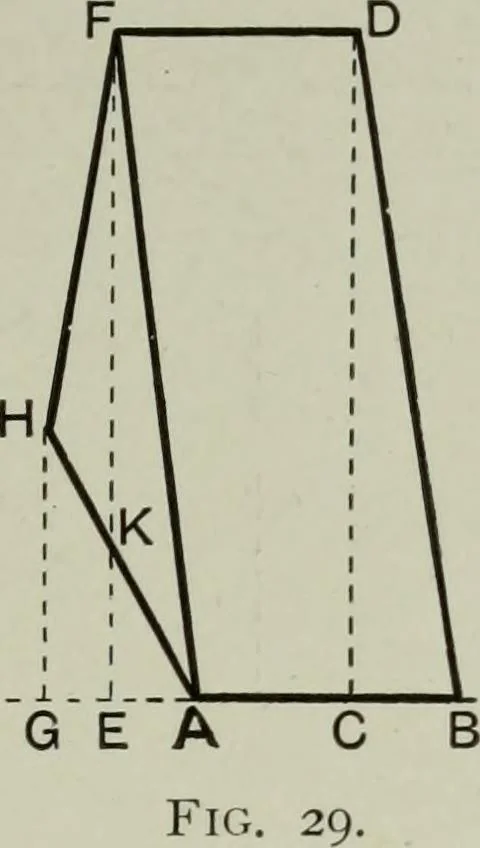

opor-tion to a B. Through e draw e f parallel to the ground line andin proportion also to a b. Having thus found the point F, join b iand d f. Find the centre line of the block by obtaining the exactposition of G on b d, and drawing a line from G to meet d f in h ;H b will be the centre line : or… … Draw a B. Find a point c on ab exactly under d, making inyour drawing c B in proportion to a b. From c draw a verticalline c d in proportion to ab, Join d b. Find a point e exactlyunder f, and from e draw e f parallel to c d and of the samelength. Join d f and a f. Find a point G on the ground…
Drawing
