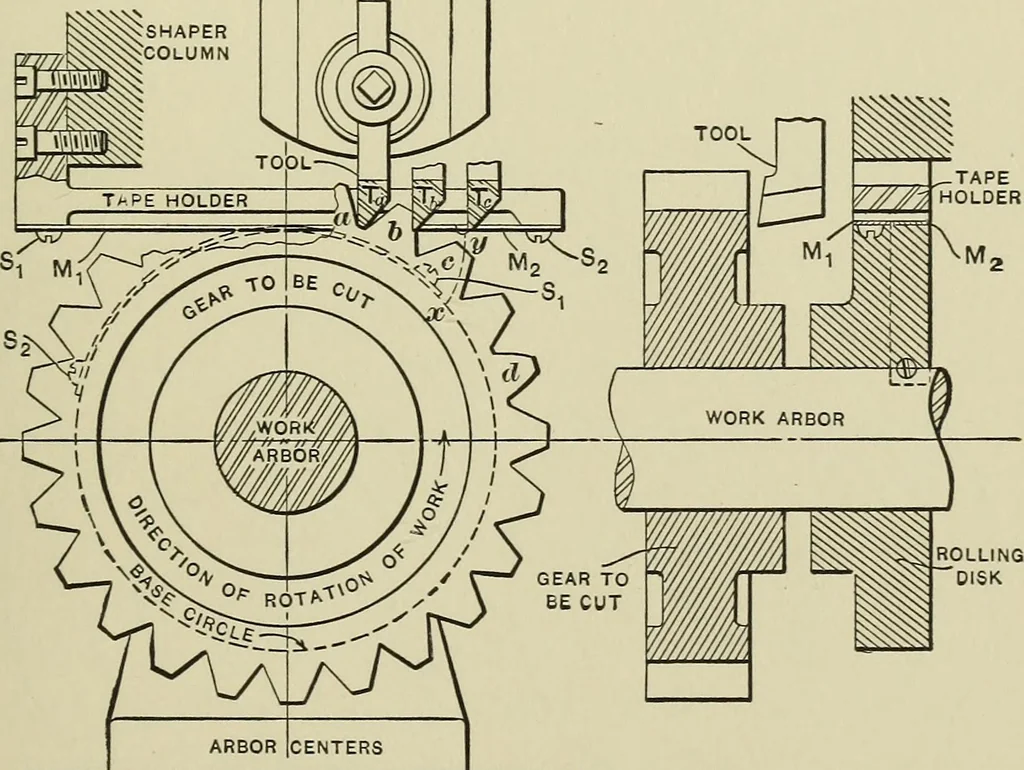

re mounted. METHODS OF CUTTING TEETH 141 Unlike the previous cases considered, the work arbor in this caseis free to revolve on centers without being restrained by an in-dexing mechanism; as in previous cases, the blank has had theteeth roughed out. The tool used is a shaper, as before. Tosome… … ARBOR CENTERS mmmmmmmmmmw/ DIRECTION OF FEED OF SHAPER TABLE Machinery Fig. 4. The Describing-generating Process by which the Point of theTool is Constrained to Follow the Desired Outline and the corresponding screw on the rolling disk, while the latteris similarly stretched between screws ^2 and…
