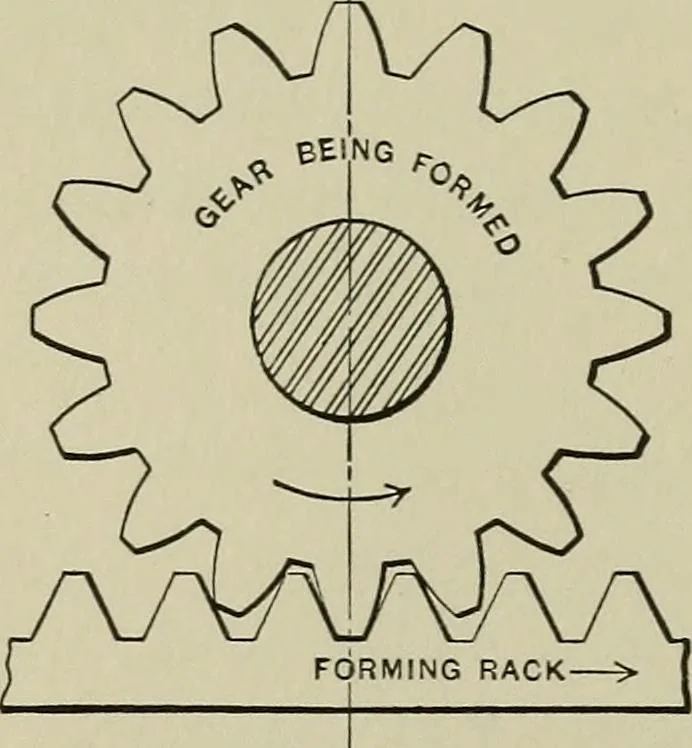

which it meshes into correct teeth, asshown. By Shaping or Planing. — In Fig. 8 but one tooth space ofthe gear is formed at a time, and instead of using a rack to do 144 SPUR GEARING the forming, a tool Ti may be used having an outhne the shapeof a rack tooth. This is fed along horizontally, and… … Fig. 7.IMPRESSION
