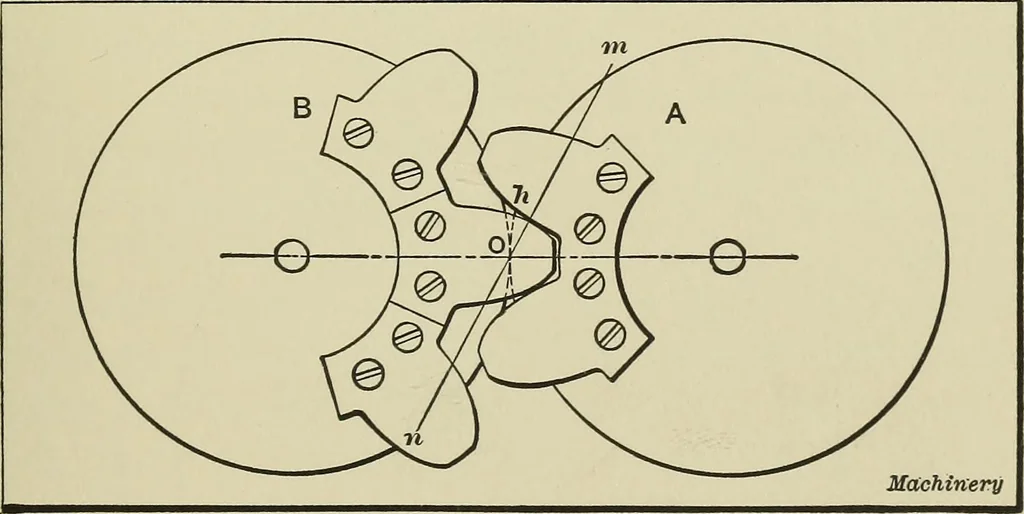

ig. 2. With the wheels fitted in this way it can be proved that theonly conditions which must be fulfilled, in order that the teethshall give to wheel B the same motion that it would have if itwere driven by frictional contact with wheel A, is that a linedrawn from the point 0, where the two wheels… … Fig. 3. Friction Wheels with Properly Shaped Gear Teeth attached to Them the teeth touch at h. If the curves are of the right shape, a linemn, drawn through h and 0, will be at right angles to bothcurves at point h. This is the law of tooth curves, and it is ofno consequence what the shape of the…
