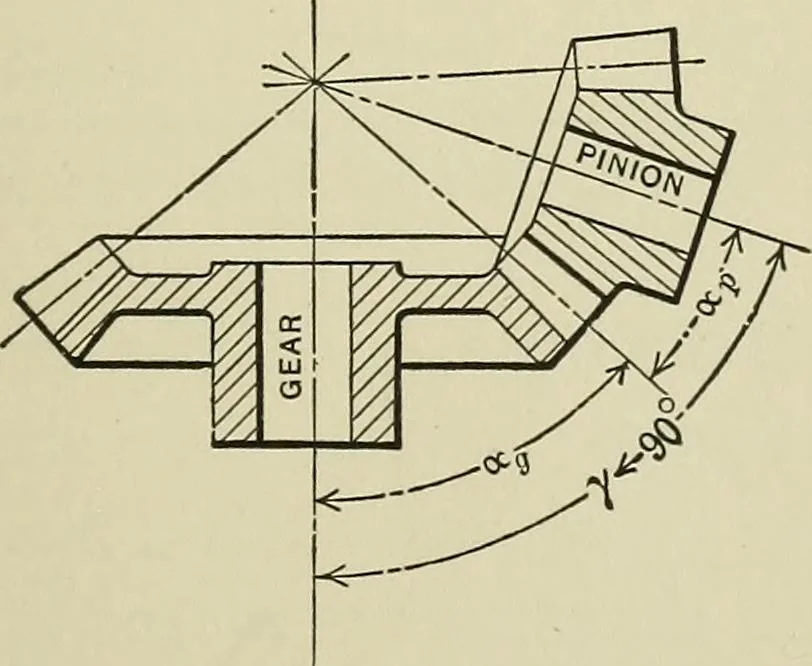

Machinery Fig. 3. Right-angle Bevel Gearing Fig. 4. Miter Gearing with each other, measured on the side on which the contactbetween the cones takes place. The center angle and the pitchcone angles of the gear and the pinion are indicated in Fig. i. Different Kinds of Bevel Gears. — In Fig. 3 is…
