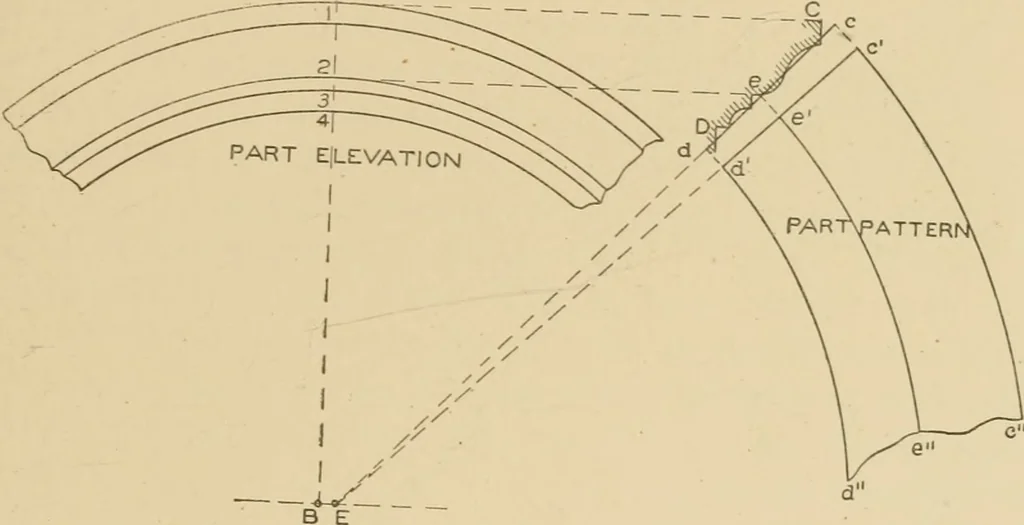

ng in sheet-metal cornice work. B shows the curved moulding,joining two horizontal pieces A and C, the true section of all the mouldsbeing shown by D. In this connection it may be proper to remark that in practice,no miters are cut on the circular blanks, the miter-cuts being placed onthe… … Fig. 353. may be. First draw the center line A B, and, with the desired centeras B, describe the outer cuitc A. At right angles to A B, in its properposition, draw a section of the profile as shown by C D. From thevarious members in this section, project lines to the center line A Bas 1, 2, 3, and…
