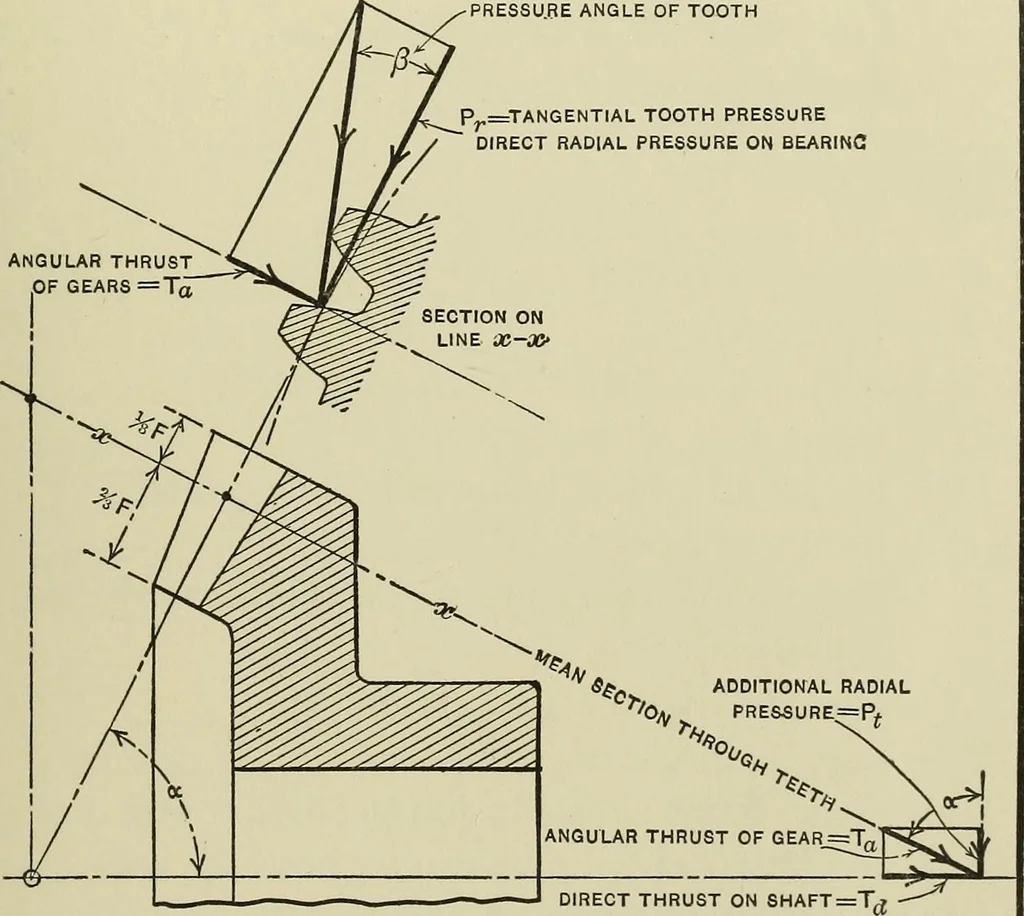

the other STRENGTH AND DESIGN 233 an additional radial pressure on the bearing. These quantitiesmay be derived by the parallelogram of forces or by the followingcalculation: Rule 5. To find the direct thrust on the shaft, multiply theangular thrust by the sine of the edge angle. Rule 6. To find the… … Machinery Fig. 4. Finding Direct Thrust and Additional Radial Bearing Pressure It is evident from Fig. 5 that the bearing pressure due to theangularity of the teeth is at right angles to that due to the tan-gential tooth pressure carrying the load. The resultant totalpressure on the bearings may be…
