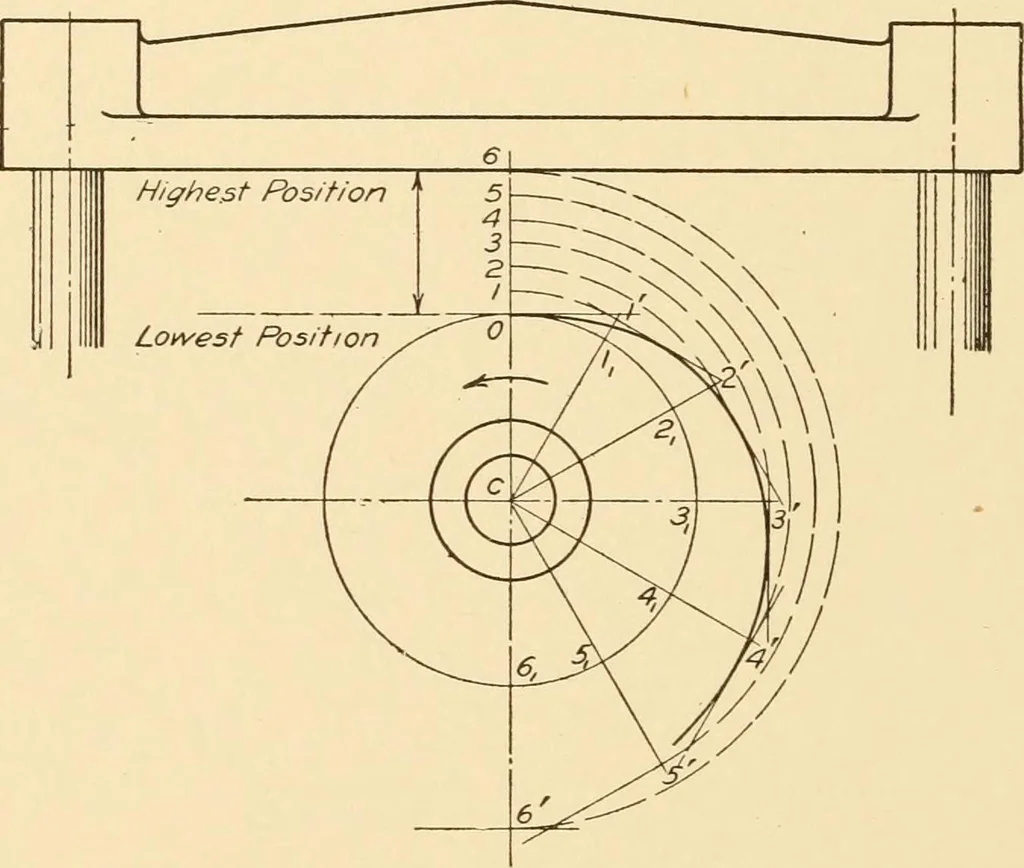

instantly, remain at rest one third revolutionand drop uniformly during the remaining third of a revolution. Draw arcs with X as a center. Divide the travel into a number ofequal parts and draw horizontal lines to locate points on the large arc.Find corresponding points on the small arc. The points… … Fig. 217. Cam with Flat Follower. one sixth of a revolution and fall during the remaining one third revolu-tion. Divide the rise into a number of equal parts. Draw circle withCO as a radius. Divide arc CD into same number of equal parts asrise. Draw radial lines. Lay off distances CI, C2, etc., on…
