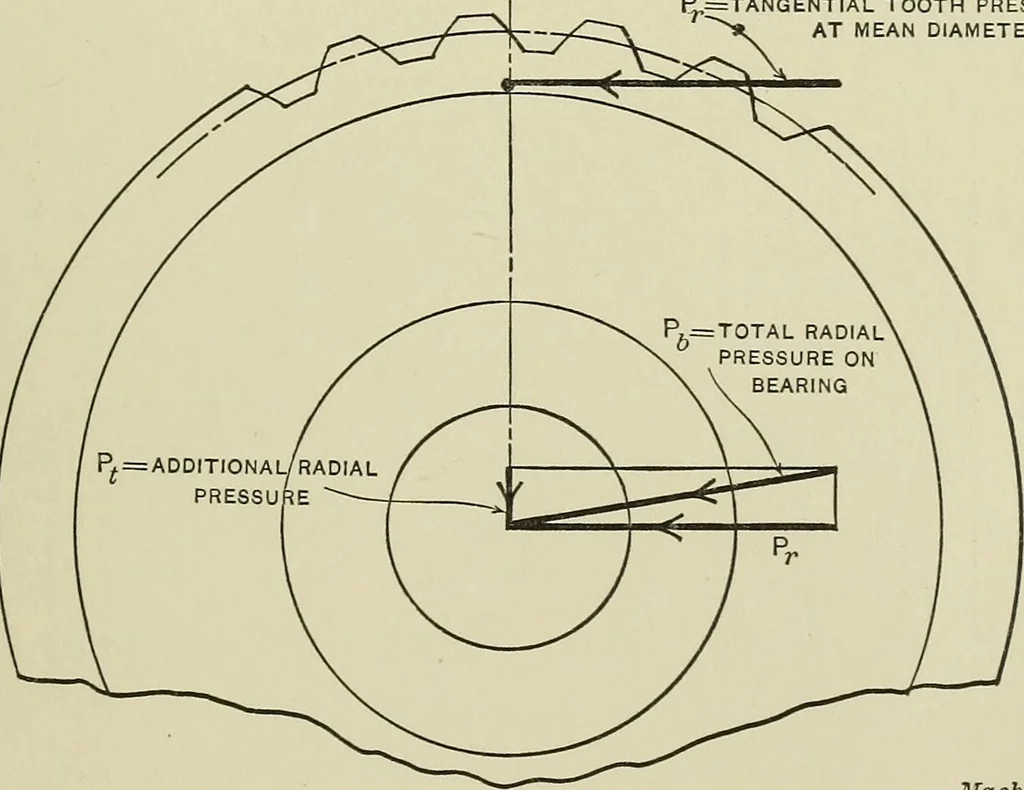

ycalculation from the given rules and formulas, as follows. STRENGTH AND DESIGN 235 Graphical calculations giving the same results by the parallelo-gram of forces are indicated in Figs. 4 and 5. Dm = 6 -IX 0.894 = 5.330 inches (i) Pr = — = 560 pounds, about (2) 5-33 P^ = —— = 560 pounds, about. . .… … Machinery Fig. 5. Finding the Total Radial Pressure on the Bearing Effect of Pressure Angle. — It will be seen from (7) that thepressure angle of the tooth has a practically neghgible effect inincreasing the radial bearing pressure. In the case of spur gears,this effect is so small that the angular…
