Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 260

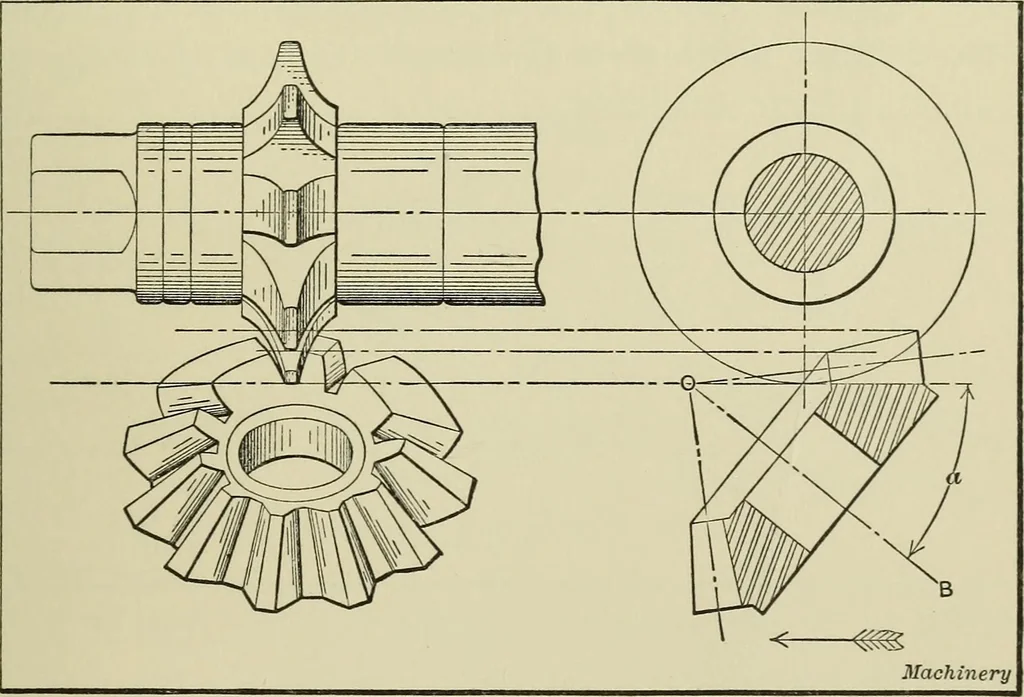

ofbevel gear teeth. The difference in the shape of tooth obtainedunder the same system as the two methods shown in Figs. 2 and3, is so sHght as to be neghgible, except perhaps, in gears havingvery few teeth. Whatever the method pursued for laying outor studying the action, all the elements of which… … Fig. 4. Shaping the Teeth of a Bevel Gear by the Formed Cutter Process Five Principles of Action. — All of the five principles of actionon which.spur gear teeth may be formed (the formed tool, thetemplet, the odontographic, the describing-generating and themolding-generating principles) may be also…
Gearing
